Suspended Electric Self Cleaning Oil Cooled Magnetic Separator

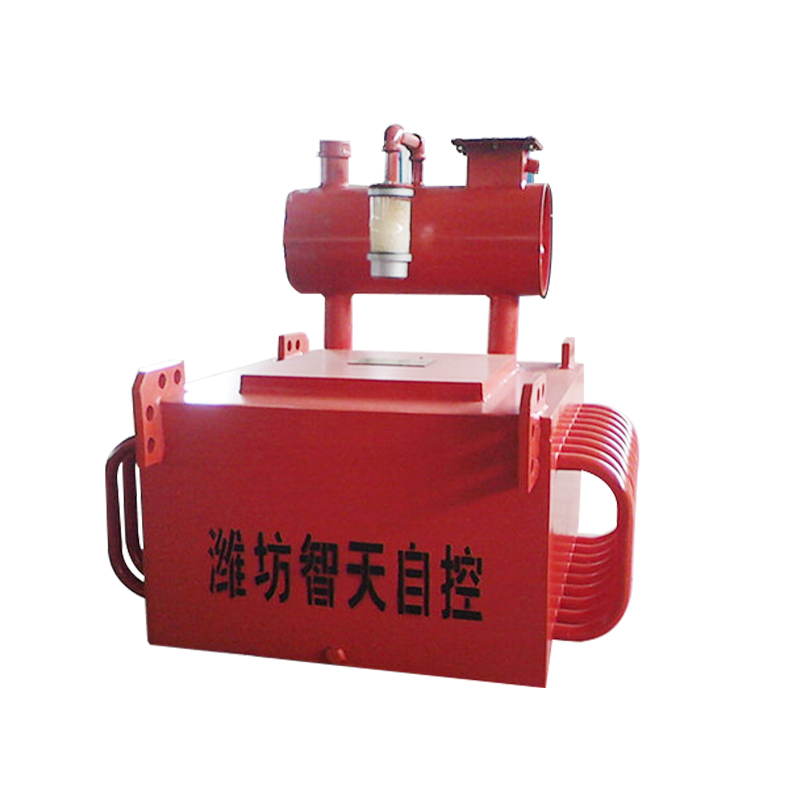

RCDE type oil cooling electromagnetic iron remover adopts advanced internal and external oil circulation heat pipe design and unique winding technology of internal excitation coil.
- Information
RCDE type oil cooling electromagnetic iron remover adopts advanced internal and external oil circulation heat pipe design and unique winding technology of internal excitation coil. It has a fully sealed structure with large magnetic force, dust-proof, rain-proof, corrosion-resistant and continuous service life.
Corrosion resistance, continuous operation, long service life, oil-cooled electromagnet separator can reliably protect grinders, crushers and so on. The main properties and specifications of the diaphragm can reach or exceed JB/T7689-95.
The weight of 0.1-25 kg ferromagnetic material can be separated from that of non-magnetic material.

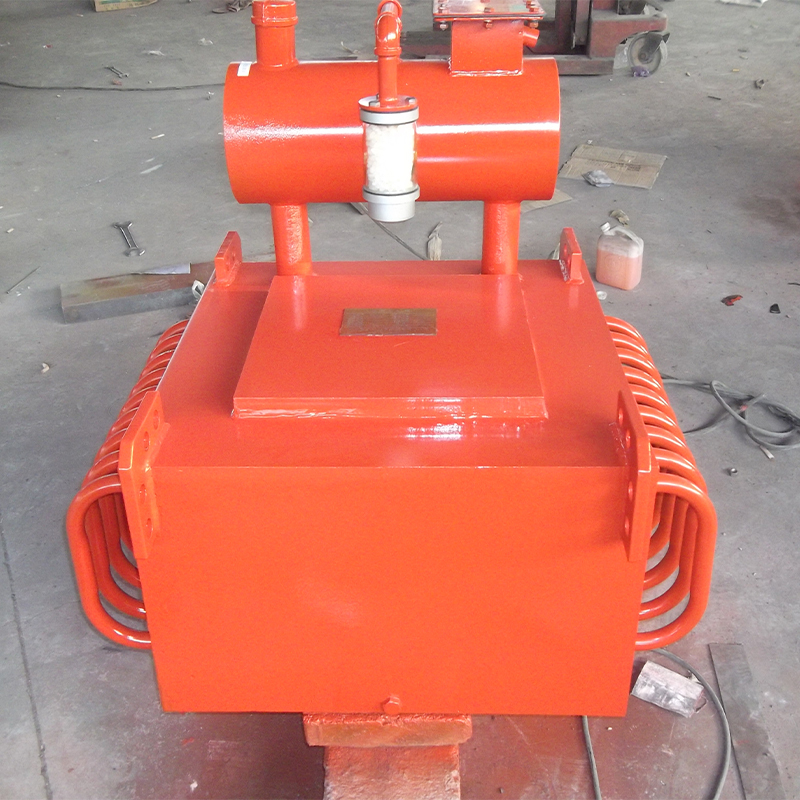

In addition to the structure of air-cooled magnets, these magnets also have pressure relief values, fill holes, drain plugs and oil level gurges.
In addition, heat exchangers can be installed if magnetic force is needed.
Advantages:
1. The computer simulates the magnetic circuit design, the magnetic depth is deep, and the magnetic field strength is high.
2. Specially designed excitation coils with longitudinal and weft cooling oil paths. Heat can be easily converted to a cooling oil to lower the coil temperature.
3. Specially designed fully sealed coils are moisture-proof, dust-proof and corrosion-resistant.

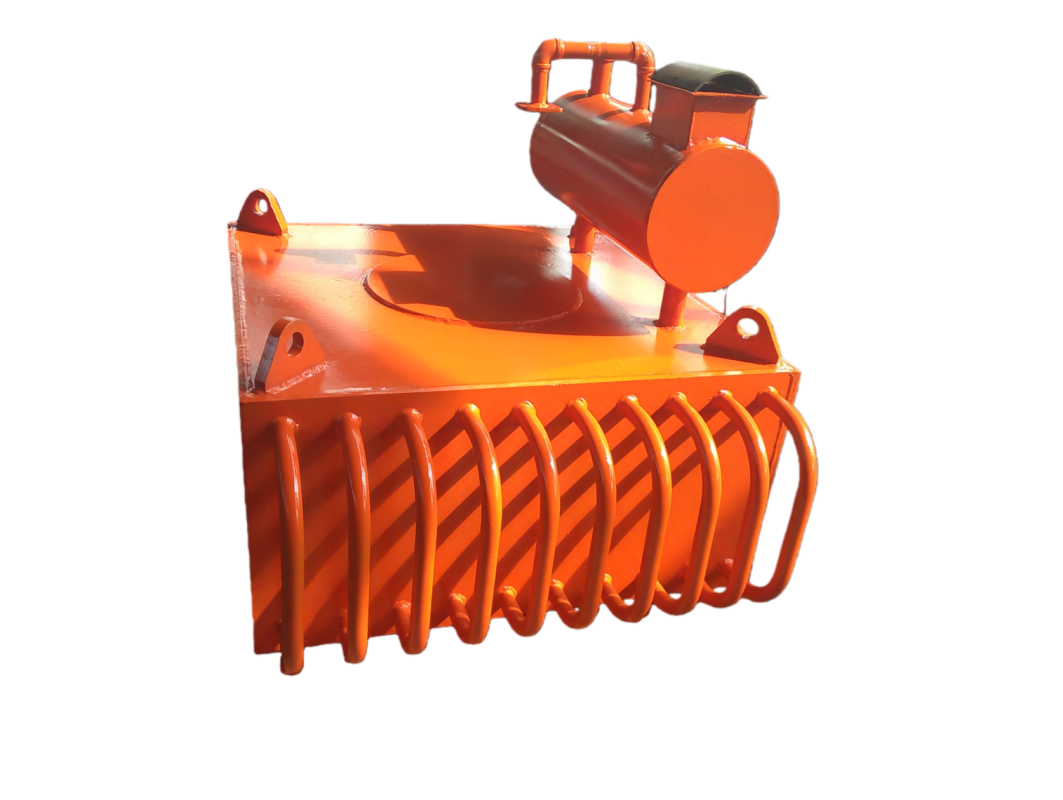

4. The corrugated fins expand the cooling area and effectively control the temperature rise.
5. Easy maintenance, self-cleaning iron scrap, stable performance.
6. The waist drum roller can automatically correct the belt. With a fully sealed housing, trouble-free operation can be achieved for a long time.
7. With close range and remote control system, it is widely used.
Founded: 2011
Facility Area: 10,000 m²
Annual Output Value: Over 20 million RMB
Team Size: 45 employees
Senior Engineers: 4
Professional Engineers: 15
Product Portfolio: 30+ series, 200+ models
Certifications & Compliance
ISO 9000 Quality Management System Certified
Service & Support
Pre-sales: Free material testing, engineering calculations, and site assessment
Installation & Commissioning: On-site technical guidance until stable operation is achieved
Training: Comprehensive operator and maintenance training
Warranty: 12 months standard (extended options available)
Spare Parts: Common wear parts in stock, emergency dispatch within 24 hours
Remote Service: Optional GPRS module for remote diagnostics, tuning, and firmware updates
Response Time: 2-hour response, 48-hour on-site arrival (major domestic regions)
After-Sales Service & Warranty
| Service Item | Commitment |
|---|---|
| Warranty Period | 12 months from commissioning (or 18 months from shipment, whichever comes first) |
| Response Time | Remote diagnosis within 1 hours (business hours) |
| On-site Service | Available within 24 hours (subject to location) |
| Spare Parts Availability | Guaranteed for 1 years after model discontinuation |
| Remote Support | RS485,DCS enables real-time diagnostic and calibration support |
Delivery & Logistics:
| Parameter | Specification | Note |
|---|---|---|
| Standard Model (rotor diameter ≤ 1000mm) | 1 – 2weeks | Stock components available |
| Standard Model (rotor diameter ≥ 1100mm) | 2 – 4 weeks | Subject to order confirmation |
| Custom-Engineered Model | 1 – 2 weeks | Special flange / coating / high-temp version |
| Spare Parts (wear parts) | 3 – 5 business days | Subject to stock availability |
| Expedited Shipping | Available upon request | Additional cost applies |
| Lead Time Start Point | Order confirmation + technical drawing approval | Excluding shipping time |
| Port of Loading | Qingdao/ Shanghai (China) | Alternate ports upon request |
| Standard Incoterms | FOB / CIF / EXW | Buyer's option |
FAQ – Quick Answers to Common Questions
Q1: How is calibration performed on-site?
A: You can perform online material calibration (preferred), or use span check with a known weight. Remote calibration is also supported without an on-site visit.
Q2: Do you provide installation and commissioning?
A: Yes. We offer supervision service — our engineer will guide your team through installation, startup, and performance testing .
Q3: What if I need a custom capacity or flange size?
A: We provide custom engineering for rotor diameter, inlet/outlet connections, and motor options — just specify your requirements in the inquiry.
