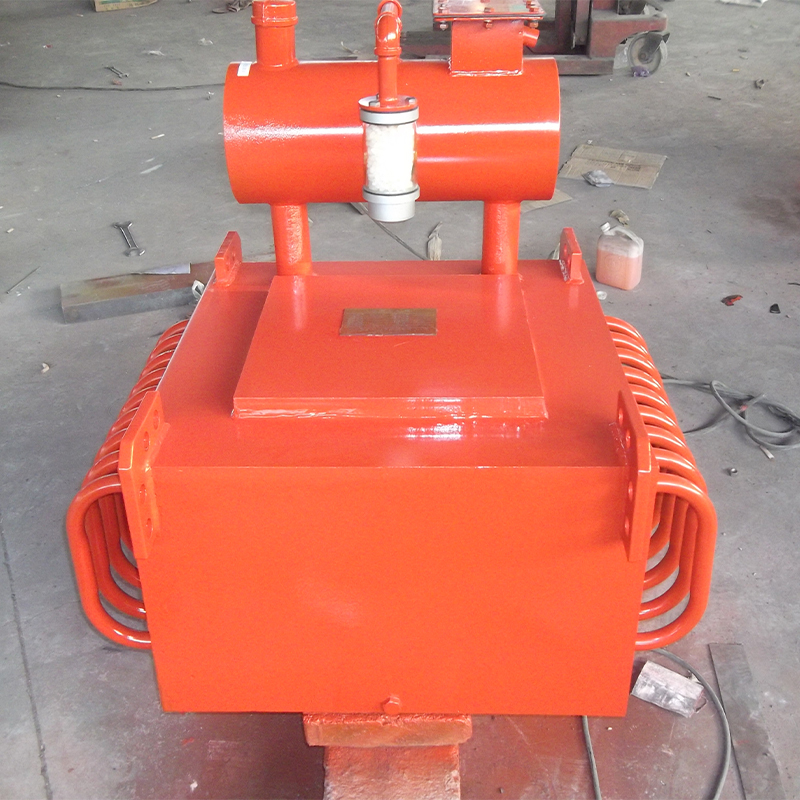

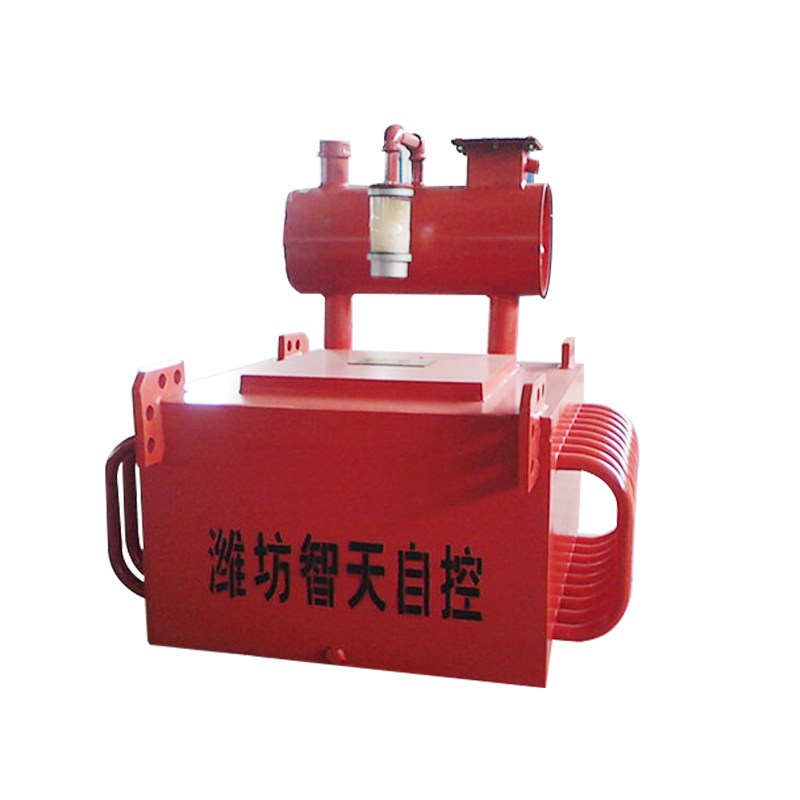

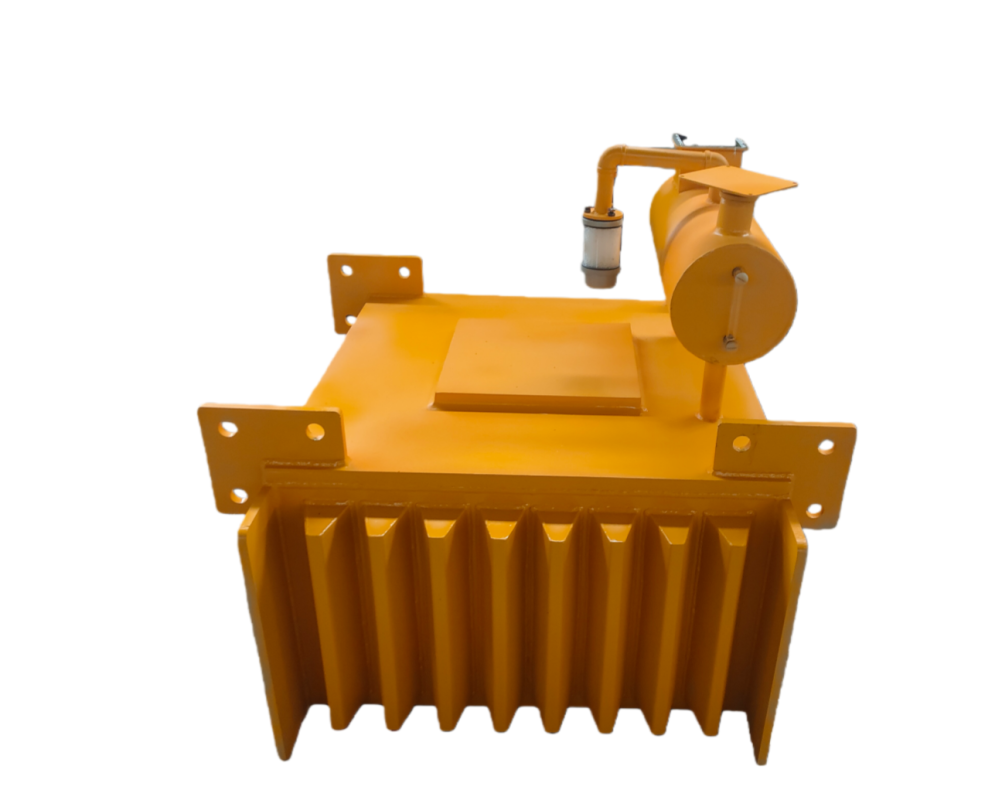

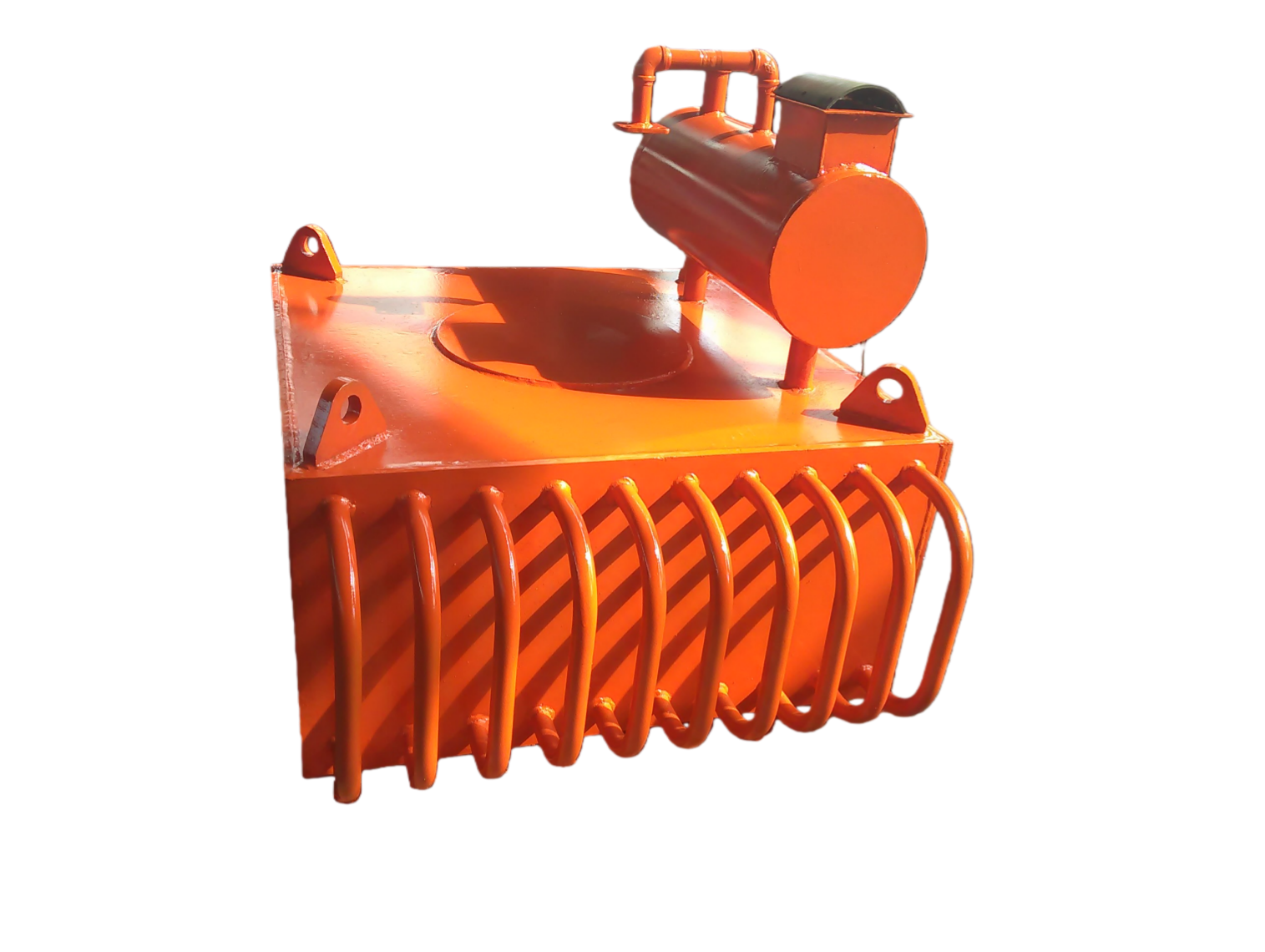

Electric Self Cleaning Oil Cooled Magnetic Separator
RCDF Oil Self-Cooling Electromagnetic Separator RCDF dry self-cleaning electromagnetic iron separator is a kind of magnetic equipment that is used in iron removal from nonmagnetic material
- Information
RCDF Oil Self-Cooling Electromagnetic Separator RCDF dry self-cleaning electromagnetic iron separator is a kind of magnetic equipment that is used in iron removal from nonmagnetic material
RCDF Oil Self-Cooling Electromagnetic Separator Product Description RCDF dry self-cleaning electromagnetic iron separator is a kind of magnetic equipment that is used in iron removal from nonmagnetic material. It usually is installed in the front or center of the belt conveyor. The strong magnetic will absorb the pieces of iron mixed with the materials and dished out by the iron discharging belt, achieving the purpose of self-cleaning, and it can prevent the discharging belt longitudinal crack, and ensure that the breaker and grinder work normally. This series iron separator is widely used in electricity, mining, metallurgy, building material, coal dressing, chemical industry, etc.
RCDF Magnetic Separation Features
The computer simulates design in magnetic circuits and strong magnetic force.
2. The special design of the exciting coil, longitudinal and transverse oil passages, is extremely conducive to the heat transfer to the transformer oil and reduces the temperature of the coil.
3. The coil is soaked and cured by a special epoxy resin, improving the insulation performance of the whole machine, fully sealed structure, dustproof, rainproof, salt spray-proof, and corrosion-resistant.
4. Self-cleaning, easy maintenance, drum-shape structure, automatic belt-off-position correct.
5. Fully functional, with manual and centralized control, which can meet the requirements for use on various occasions.
Founded: 2011
Facility Area: 10,000 m²
Annual Output Value: Over 20 million RMB
Team Size: 45 employees
Senior Engineers: 4
Professional Engineers: 15
Product Portfolio: 30+ series, 200+ models
Certifications & Compliance
ISO 9000 Quality Management System Certified
Service & Support
Pre-sales: Free material testing, engineering calculations, and site assessment
Installation & Commissioning: On-site technical guidance until stable operation is achieved
Training: Comprehensive operator and maintenance training
Warranty: 12 months standard (extended options available)
Spare Parts: Common wear parts in stock, emergency dispatch within 24 hours
Remote Service: Optional GPRS module for remote diagnostics, tuning, and firmware updates
Response Time: 2-hour response, 48-hour on-site arrival (major domestic regions)
After-Sales Service & Warranty
| Service Item | Commitment |
|---|---|
| Warranty Period | 12 months from commissioning (or 18 months from shipment, whichever comes first) |
| Response Time | Remote diagnosis within 1 hours (business hours) |
| On-site Service | Available within 24 hours (subject to location) |
| Spare Parts Availability | Guaranteed for 1 years after model discontinuation |
| Remote Support | RS485,DCS enables real-time diagnostic and calibration support |
Delivery & Logistics:
| Parameter | Specification | Note |
|---|---|---|
| Standard Model (rotor diameter ≤ 1000mm) | 1 – 2weeks | Stock components available |
| Standard Model (rotor diameter ≥ 1100mm) | 2 – 4 weeks | Subject to order confirmation |
| Custom-Engineered Model | 1 – 2 weeks | Special flange / coating / high-temp version |
| Spare Parts (wear parts) | 3 – 5 business days | Subject to stock availability |
| Expedited Shipping | Available upon request | Additional cost applies |
| Lead Time Start Point | Order confirmation + technical drawing approval | Excluding shipping time |
| Port of Loading | Qingdao/ Shanghai (China) | Alternate ports upon request |
| Standard Incoterms | FOB / CIF / EXW | Buyer's option |
FAQ – Quick Answers to Common Questions
Q1: Can it handle high-temperature materials?
A: Standard model up to 80°C.
Q2: What if my material is slightly sticky or moist?
A: Our variable-pitch airlock handles up to 20% moisture for most powders. For sticky materials, we recommend an optional internal coating or polishing treatment.
Q3: How is calibration performed on-site?
A: You can perform online material calibration (preferred), or use span check with a known weight. Remote calibration is also supported without an on-site visit.
Q4: Do you provide installation and commissioning?
A: Yes. We offer supervision service — our engineer will guide your team through installation, startup, and performance testing .
Q5: What if I need a custom capacity or flange size?
A: We provide custom engineering for rotor diameter, inlet/outlet connections, and motor options — just specify your requirements in the inquiry.
