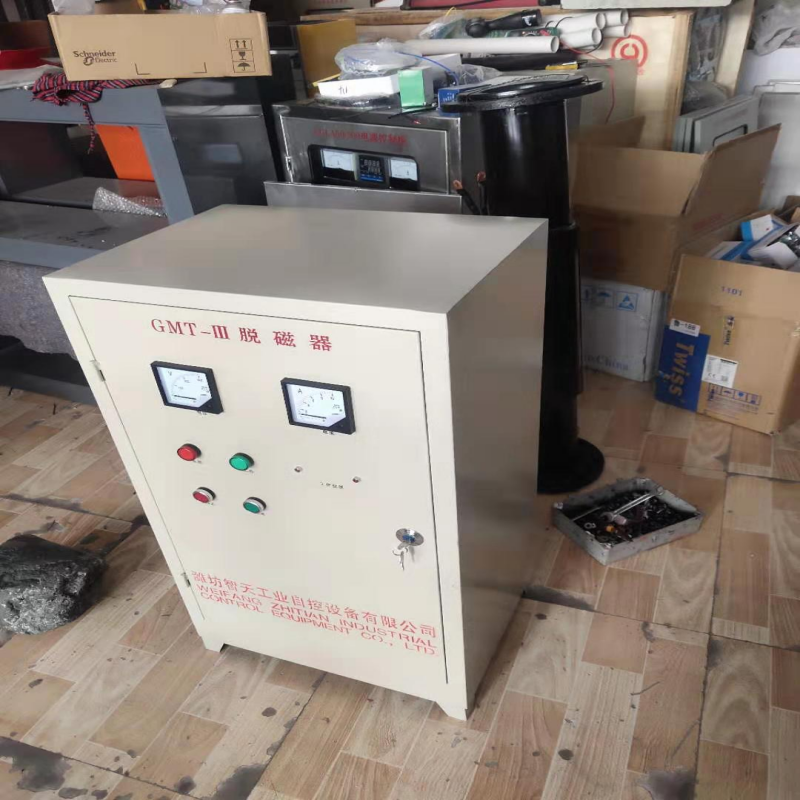

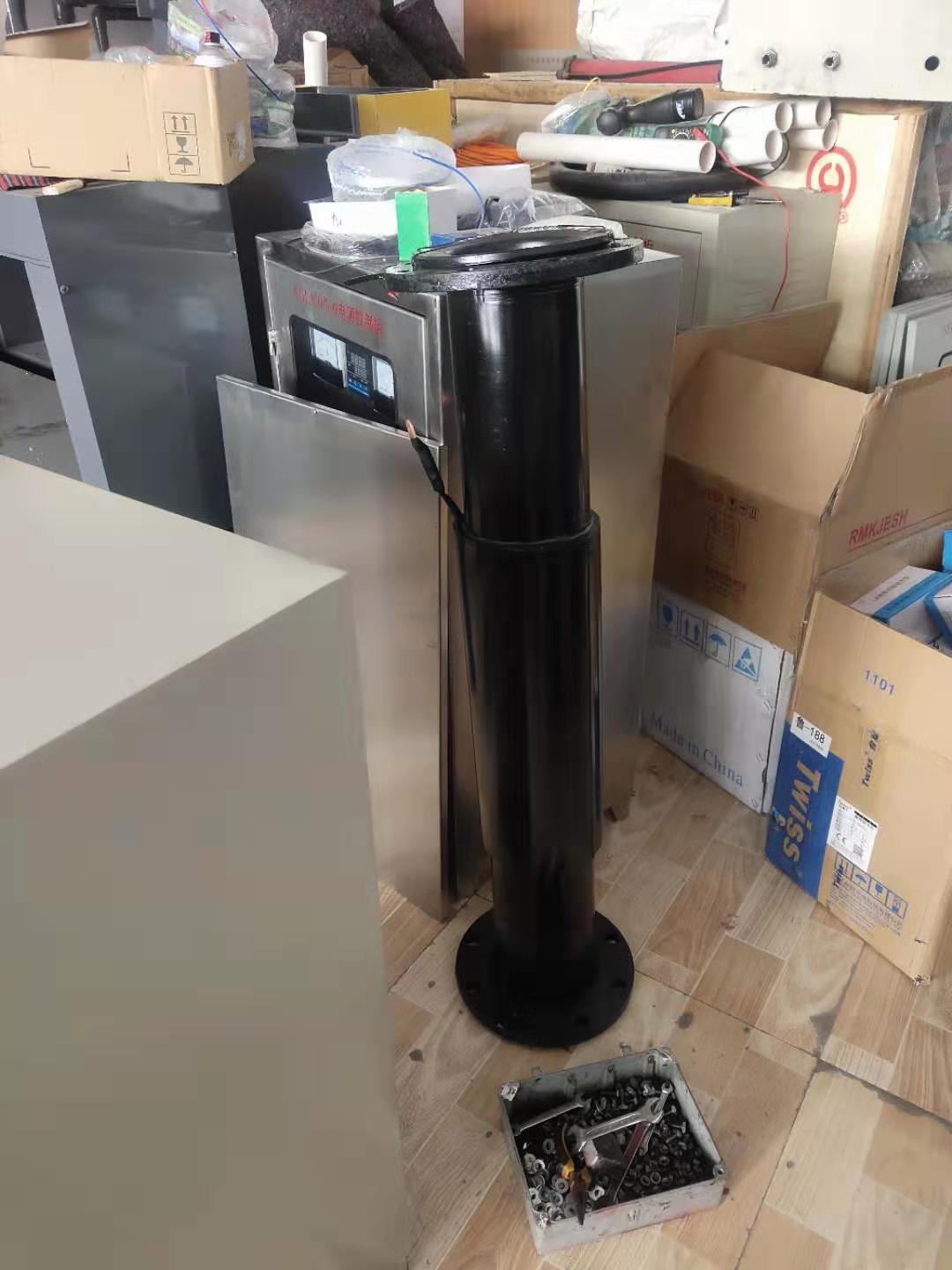

High Frequency Pulse Demagnetizer
RGT series pulse demagnetizers are widely used in magnetic separation plants, coal washing plants, and mechanical processing and powder metallurgy industries for efficient demagnetization, enhancing process stability and effectiveness.
- Information
RGT series pulse demagnetizers are widely used in magnetic separation plants, coal washing plants, and mechanical processing and powder metallurgy industries for efficient demagnetization, enhancing process stability and effectiveness.
RGT series pulse demagnetizers can be widely used in the following industries:
◆ Demagnetization before grading, screening and filtration in magnetic separation plants has obvious demagnetization effect, which can significantly improve screening and classification efficiency, reduce the moisture content of concentrate filter cake, and improve the comprehensive indicators of mineral processing.
◆ In the heavy-medium coal preparation system of the coal washing plant, the weighting agent used is ferromagnetic ore powder. After magnetization, the residual magnetism is large, the magnetic agglomeration is serious, the settling speed is fast, and the stability is poor. Demagnetization can greatly reduce the settling speed of the medium, so as to improve stability.
◆ In the mechanical processing powder metallurgy industry, ferromagnetic workplaces have a large residual magnetism after being affected by a magnetic field, which attracts each other or absorbs iron powder, affecting the next process operations, such as grinding machine processing, magnetic lifting, punching and shearing, etc.
Founded: 2011
Facility Area: 10,000 m²
Annual Output Value: Over 20 million RMB
Team Size: 45 employees
Senior Engineers: 4
Professional Engineers: 15
Product Portfolio: 30+ series, 200+ models
Certifications & Compliance
ISO 9000 Quality Management System Certified
Service & Support
Pre-sales: Free material testing, engineering calculations, and site assessment
Installation & Commissioning: On-site technical guidance until stable operation is achieved
Training: Comprehensive operator and maintenance training
Warranty: 12 months standard (extended options available)
Spare Parts: Common wear parts in stock, emergency dispatch within 24 hours
Remote Service: Optional GPRS module for remote diagnostics, tuning, and firmware updates
Response Time: 2-hour response, 48-hour on-site arrival (major domestic regions)
After-Sales Service & Warranty
| Service Item | Commitment |
|---|---|
| Warranty Period | 12 months from commissioning (or 18 months from shipment, whichever comes first) |
| Response Time | Remote diagnosis within 1 hours (business hours) |
| On-site Service | Available within 24 hours (subject to location) |
| Spare Parts Availability | Guaranteed for 1 years after model discontinuation |
| Remote Support | RS485,DCS enables real-time diagnostic and calibration support |
Delivery & Logistics:
| Parameter | Specification | Note |
|---|---|---|
| Standard Model (rotor diameter ≤ 1000mm) | 1 – 2weeks | Stock components available |
| Standard Model (rotor diameter ≥ 1100mm) | 2 – 4 weeks | Subject to order confirmation |
| Custom-Engineered Model | 1 – 2 weeks | Special flange / coating / high-temp version |
| Spare Parts (wear parts) | 3 – 5 business days | Subject to stock availability |
| Expedited Shipping | Available upon request | Additional cost applies |
| Lead Time Start Point | Order confirmation + technical drawing approval | Excluding shipping time |
| Port of Loading | Qingdao/ Shanghai (China) | Alternate ports upon request |
| Standard Incoterms | FOB / CIF / EXW | Buyer's option |
FAQ – Quick Answers to Common Questions
Q1: Can it handle high-temperature materials?
A: Standard model up to 80°C.
Q2: What if my material is slightly sticky or moist?
A: Our variable-pitch airlock handles up to 20% moisture for most powders. For sticky materials, we recommend an optional internal coating or polishing treatment.
Q3: How is calibration performed on-site?
A: You can perform online material calibration (preferred), or use span check with a known weight. Remote calibration is also supported without an on-site visit.
Q4: Do you provide installation and commissioning?
A: Yes. We offer supervision service — our engineer will guide your team through installation, startup, and performance testing .
Q5: What if I need a custom capacity or flange size?
A: We provide custom engineering for rotor diameter, inlet/outlet connections, and motor options — just specify your requirements in the inquiry.
