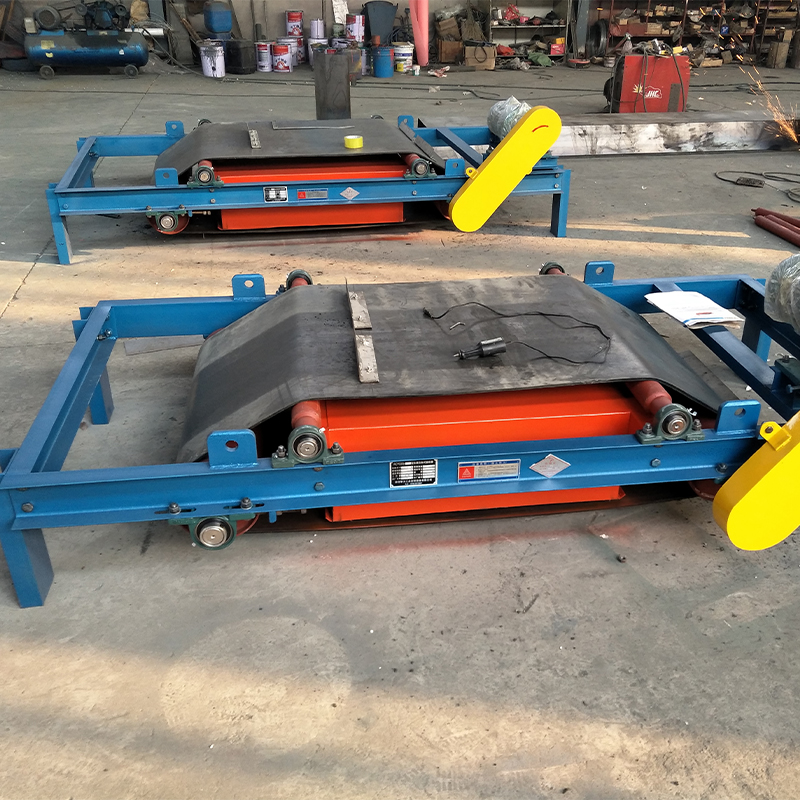

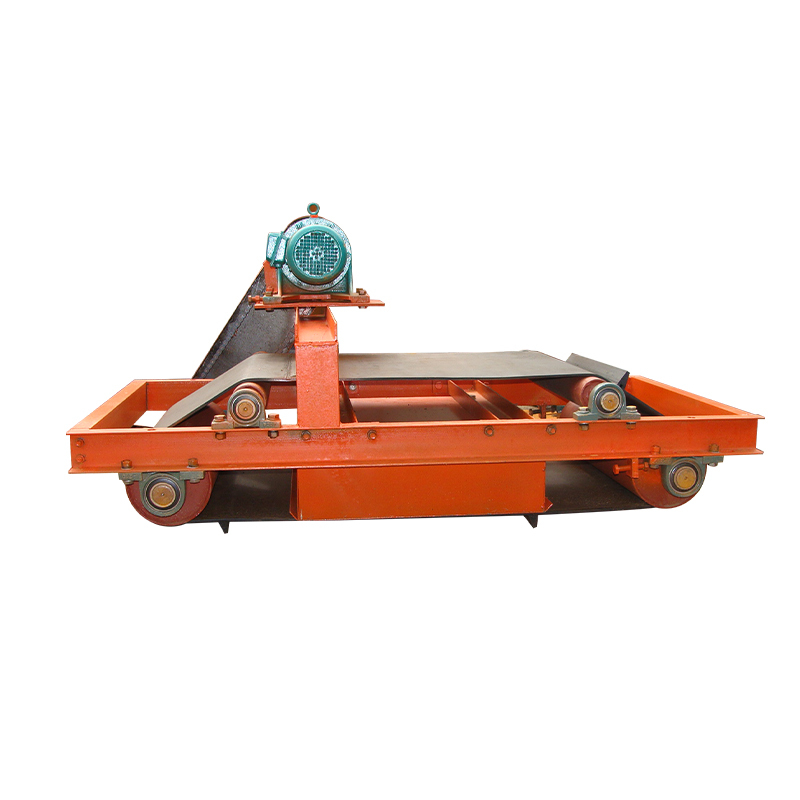

Self-Cleaning Permanent Magnetic Separator

Reliable Automatic Iron Removal for Bulk Material Conveying

The Self-Cleaning Permanent Magnetic Separator is an automatic magnetic separation solution designed for continuously removing ferrous metal contaminants from bulk materials. The Self-Cleaning Permanent Magnetic Separator combines a high-performance permanent magnetic system with a continuously rotating cleaning belt, allowing captured iron pieces to be automatically discharged without manual cleaning.

 Self-CleaningPermanent Magnetic Separator is used to eliminate the ferromagnetic material weighing from 0.1kg to 25 kg. Its internal magnetic circuit is designed using computer simulation and its perfect bi-polar structure can guarantee failure-free operation in harsh working conditions. Anti-blast models are available.

The Self-Cleaning Magnetic Separator is widely used above belt conveyors, transfer points and material handling lines. The Self-Cleaning Permanent Magnetic Separator can remove tramp iron, steel fragments, bolts, nuts and other magnetic contaminants from coal, limestone, ore, clinker, aggregates and other bulk materials.

For production lines requiring continuous operation, the Permanent Magnetic Separator provides an effective method for improving material purity and protecting downstream machinery. The automatic cleaning function also reduces operator involvement and supports stable long-term operation.

What Is a Self-Cleaning Permanent Magnetic Separator?

A Self-Cleaning Permanent Magnetic Separator is a permanent magnetic separation device equipped with an automatic cleaning belt. The permanent magnetic system creates a strong and stable magnetic field above the conveyed material, while the self-cleaning belt continuously transports captured ferrous contaminants away from the magnetic field.

Unlike manual magnetic iron removal methods, the Self-Cleaning Magnetic Separator can continuously separate ferrous metal while the conveyor remains in operation. The automatic discharge function allows the Permanent Magnetic Separator to work continuously in high-capacity material conveying applications.

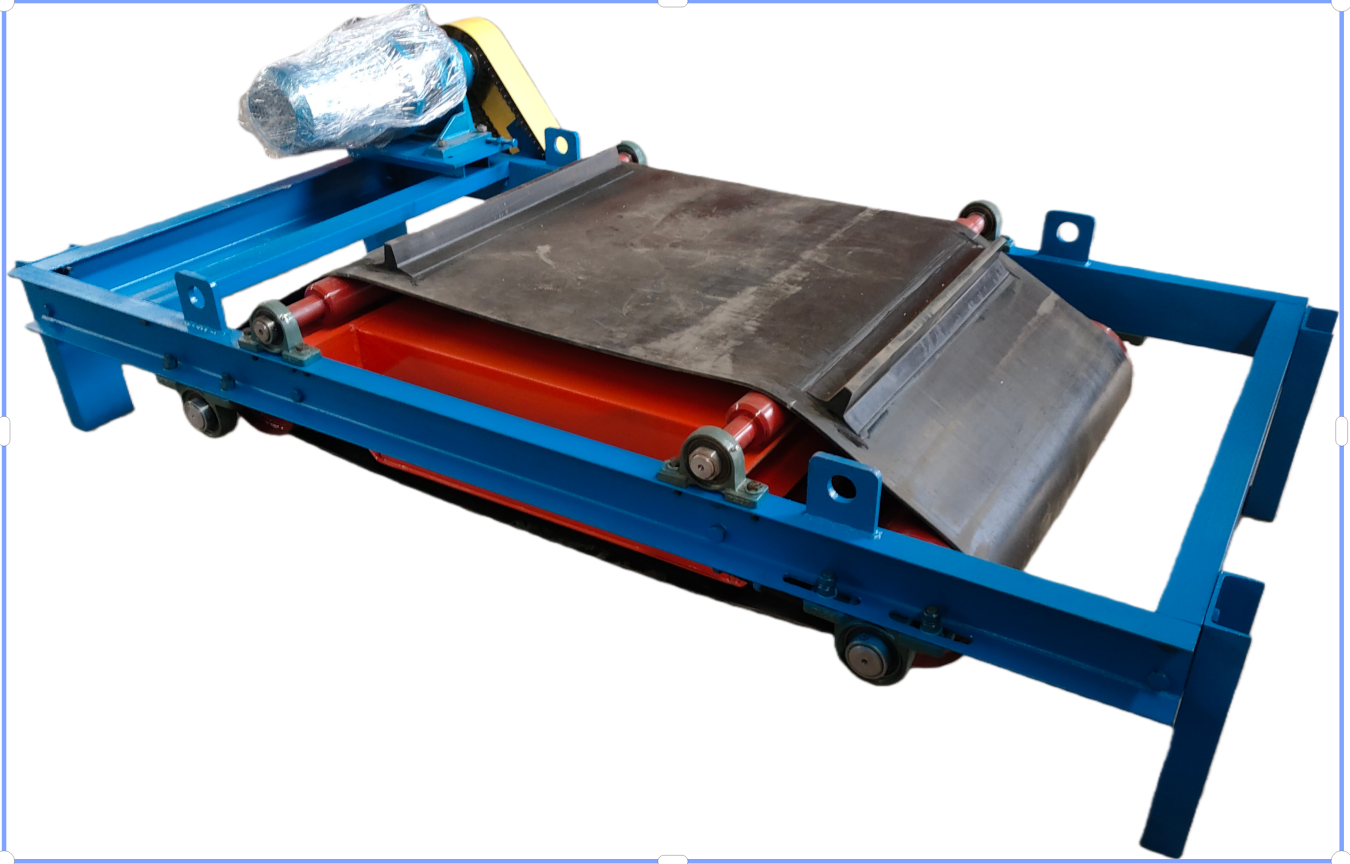

The Overband Magnetic Separator configuration is particularly suitable for conveyor systems where large quantities of bulk material must be processed. The Magnetic Separator for Conveyor Belt can be positioned above the conveyor according to conveyor width, belt speed, material thickness and required separation distance.

Working Principle

The working principle of the Self-Cleaning Permanent Magnetic Separator is based on magnetic attraction and continuous mechanical discharge.

Bulk material travels along the conveyor belt and passes underneath the Permanent Magnetic Separator. When ferrous metal enters the magnetic field, the permanent magnet system generates sufficient attraction force to lift the magnetic contaminant away from the material stream.

After the ferrous metal is captured, the rotating cleaning belt carries the captured metal toward the discharge area. When the metal moves beyond the effective magnetic field, the magnetic attraction decreases and the captured metal falls into a separate collection area.

The continuous cleaning process allows the Self-Cleaning Magnetic Separator to remove ferrous contaminants without stopping the conveyor. The automatic cleaning function makes the Magnetic Separator for Conveyor Belt suitable for continuous-duty production lines.

Main Advantages

1. Automatic Continuous Cleaning

The major advantage of the Self-Cleaning Permanent Magnetic Separator is automatic iron discharge. The self-cleaning belt continuously transports captured ferrous contaminants away from the magnetic zone, reducing the need for manual cleaning.

The automatic cleaning design makes the Self-Cleaning Magnetic Separator particularly suitable for high-throughput conveying systems. Continuous operation also helps maintain consistent separation performance throughout the production process.

2. Stable Permanent Magnetic Performance

The Permanent Magnetic Separator uses permanent magnetic materials to generate a stable magnetic field without requiring continuous electrical excitation for magnetic generation. Reduced dependence on electrical excitation can simplify system operation and help reduce energy consumption.

The permanent magnetic structure also provides reliable magnetic performance for long-term industrial applications.

3. Protection for Downstream Equipment

Metal contaminants can cause severe damage when entering crushers, mills, screens, feeders and other processing machinery. The Magnetic Separator for Conveyor Belt can remove tramp iron before ferrous contaminants reach critical processing equipment.

The Self-Cleaning Permanent Magnetic Separator therefore provides both material purification and equipment protection. Reduced tramp iron entry can help lower unexpected shutdowns, maintenance requirements and replacement costs.

4. Suitable for Heavy-Duty Applications

The Overband Magnetic Separator can be designed for demanding industrial environments involving dust, vibration, abrasive materials and continuous material flow.

Applications involving coal, iron ore, limestone, clinker, slag and aggregates can benefit from the robust structure of the Self-Cleaning Magnetic Separator.

5. Flexible Installation

The Magnetic Separator for Conveyor Belt can be installed above a conveyor in either cross-belt or inline configurations, depending on material flow and project requirements.

Installation height, magnetic configuration, cleaning belt width and support structure can be customized according to conveyor specifications.

Applications

The Self-Cleaning Permanent Magnetic Separator is suitable for many bulk material handling industries.

Mining Industry

Mining operations frequently handle large quantities of ore and mineral materials. Steel fragments, bolts and other ferrous objects can enter the conveying system during excavation, transportation and processing.

A Permanent Magnetic Separator can remove unwanted ferrous contaminants before the material reaches crushers, screens and grinding equipment.

Cement Industry

Cement plants use conveyors to transport limestone, clinker, coal and other raw materials. Tramp iron can cause serious damage to crushers and grinding systems.

A Self-Cleaning Magnetic Separator installed above the conveyor can continuously remove ferrous contaminants and provide additional protection for downstream equipment.

Coal and Power Plants

Coal conveying systems require reliable protection because foreign metal objects can enter the coal stream during mining and transportation.

The Magnetic Separator for Conveyor Belt can continuously remove steel and iron contaminants from coal while maintaining normal conveyor operation.

Aggregate and Quarry Industry

Crushing and screening systems process large quantities of stone and aggregate. Ferrous contaminants can damage expensive crushing equipment.

The Overband Magnetic Separator provides continuous tramp iron removal and can help improve the reliability of aggregate processing systems.

Recycling Industry

Recycling plants need effective separation of ferrous metals from non-magnetic materials. The Self-Cleaning Permanent Magnetic Separator can be integrated into conveyor-based recycling systems for continuous ferrous metal recovery.

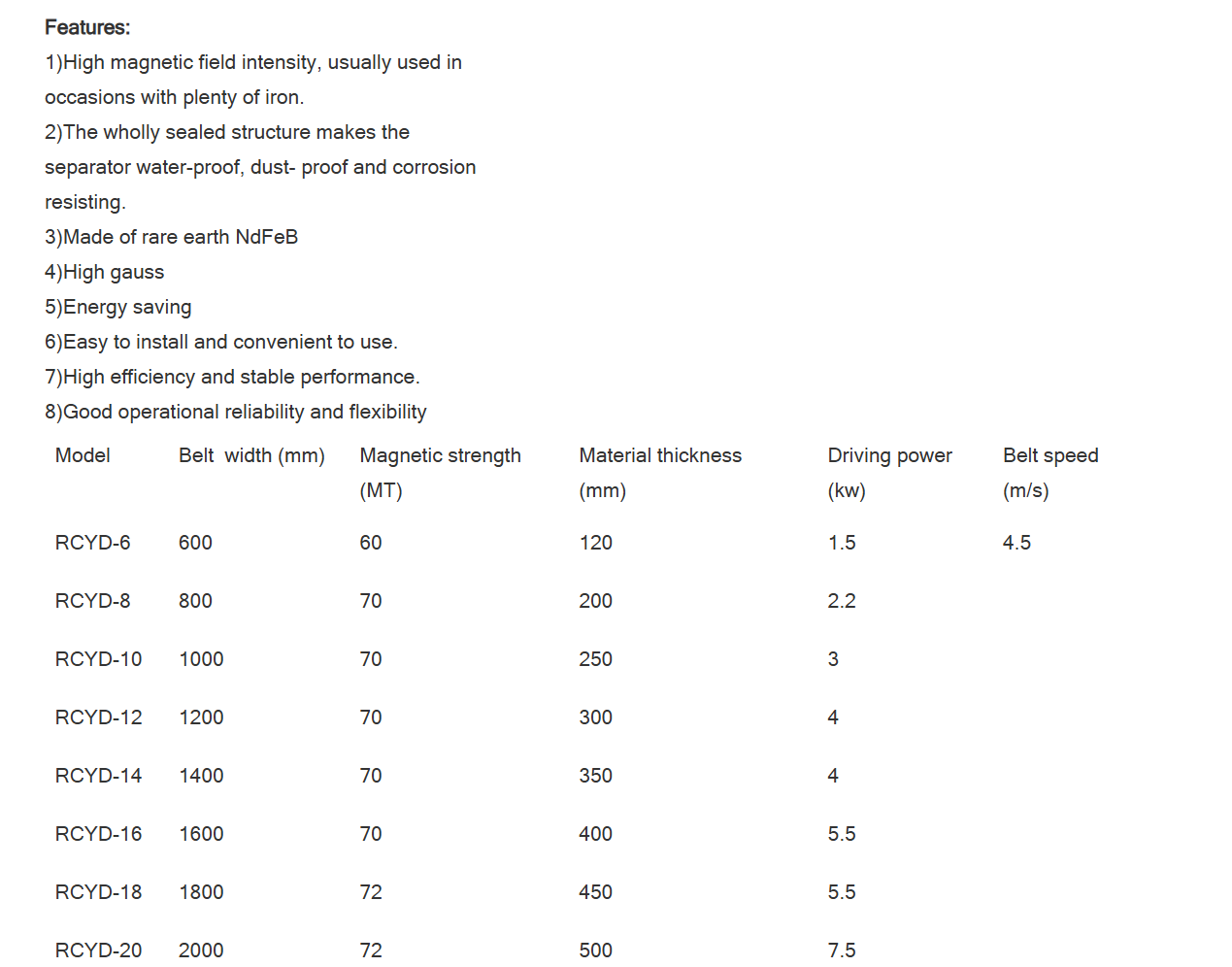

Technical Parameters

The final configuration of the Permanent Magnetic Separator should be selected according to material characteristics, conveyor width, belt speed, material layer thickness, installation height and expected ferrous metal size.

Self-Cleaning Magnetic Separator vs. Manual Magnetic Separator

A manual magnetic separator requires operators to periodically remove accumulated iron contaminants from the magnetic surface. Manual cleaning can increase labor requirements and may require production interruptions when large quantities of ferrous metal are present.

The Self-Cleaning Magnetic Separator provides automatic discharge through the rotating cleaning belt. Continuous discharge reduces manual intervention and allows the conveyor to maintain normal operation.

For high-capacity applications, the Self-Cleaning Permanent Magnetic Separator offers a more suitable solution for continuous iron removal. Automatic cleaning can also provide more consistent operating efficiency compared with periodic manual cleaning.

Self-Cleaning Permanent Magnetic Separator vs. Electromagnetic Separator

Both permanent magnetic separators and electromagnetic separators can provide effective ferrous metal separation, but the magnetic generation methods are different.

The Permanent Magnetic Separator uses permanent magnetic materials to create a magnetic field, while an electromagnetic separator generates magnetic force through an energized electromagnetic system.

For applications where stable magnetic performance, lower operating energy requirements and simple operation are important, the Self-Cleaning Permanent Magnetic Separator can provide an attractive solution.

The final selection between a permanent magnetic system and an electromagnetic system should consider conveyor speed, material thickness, installation height, tramp iron size, required magnetic force and project operating conditions.

Customized Magnetic Separation Solutions

Different conveying systems require different magnetic separation configurations. A Magnetic Separator for Conveyor Belt handling lightweight material may require a different magnetic arrangement from a separator handling dense iron ore or heavy aggregate.

Customized design can consider conveyor width, conveyor speed, material capacity, material density, particle size, material layer thickness and installation height.

The Self-Cleaning Permanent Magnetic Separator can also be configured according to the expected size and quantity of tramp iron. A properly selected magnetic system can improve separation efficiency while providing reliable protection for downstream machinery.

Quality and Manufacturing Considerations

Reliable performance begins with appropriate magnetic system design and mechanical construction. The Self-Cleaning Magnetic Separator should maintain stable magnetic force while the cleaning belt operates continuously under industrial conditions.

The supporting frame, magnetic housing, cleaning belt, drive system and protective structure should be selected according to the operating environment.

For abrasive materials and heavy-duty conveying applications, the Overband Magnetic Separator can be manufactured with a reinforced structure and wear-resistant components to support long-term operation.

Why Choose a Self-Cleaning Permanent Magnetic Separator?

A Self-Cleaning Permanent Magnetic Separator provides several important benefits for modern bulk material handling systems:

• Automatic continuous ferrous metal removal

• Stable permanent magnetic performance

• Reduced manual cleaning requirements

• Protection for crushers, mills and conveyors

• Flexible installation above belt conveyors

• Suitable for high-capacity material handling

• Lower magnetic excitation energy requirements

• Customizable according to conveyor specifications

• Suitable for demanding industrial environments

• Improved reliability of downstream processing equipment

The Permanent Magnetic Separator can become an important protection unit within a complete material handling system. Proper magnetic separator selection can help reduce equipment damage, improve production continuity and maintain cleaner material flow.

Conclusion

The Self-Cleaning Permanent Magnetic Separator provides an efficient solution for automatic ferrous metal removal from continuous bulk material conveying systems. The combination of a permanent magnetic system and automatic cleaning belt allows continuous separation without requiring frequent manual intervention.

From mining and cement production to coal handling, aggregate processing, power generation and recycling, the Self-Cleaning Magnetic Separator can provide reliable tramp iron removal and downstream equipment protection.

For conveyor systems requiring continuous automatic iron removal, the Overband Magnetic Separator and Magnetic Separator for Conveyor Belt configurations can be customized according to conveyor width, belt speed, material characteristics, installation height and separation requirements.

A properly selected Self-Cleaning Permanent Magnetic Separator can improve production reliability, reduce maintenance risks and provide long-term protection for valuable processing equipment.
