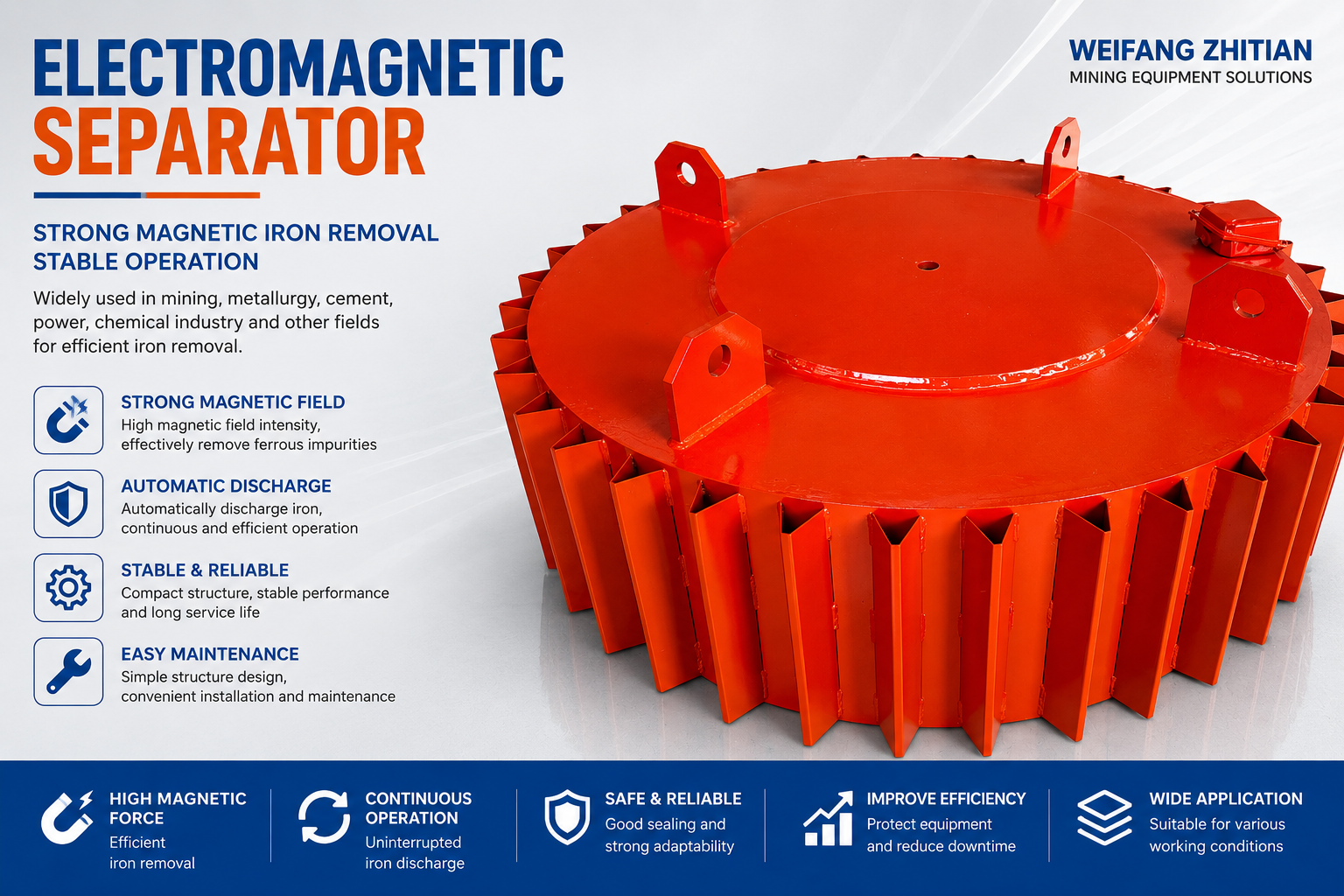

Electromagnetic iron separator
RCDB type disc type electromagnetic iron removal device is used to remove powder or block non-magnetic materials in the iron removal device, when the power will produce a strong magnetic force, after the power off the magnetic force disappears, simple operation, easy to use.
- Zhitian
- Shandong
- 3-5days
- 1000PCS
- Information

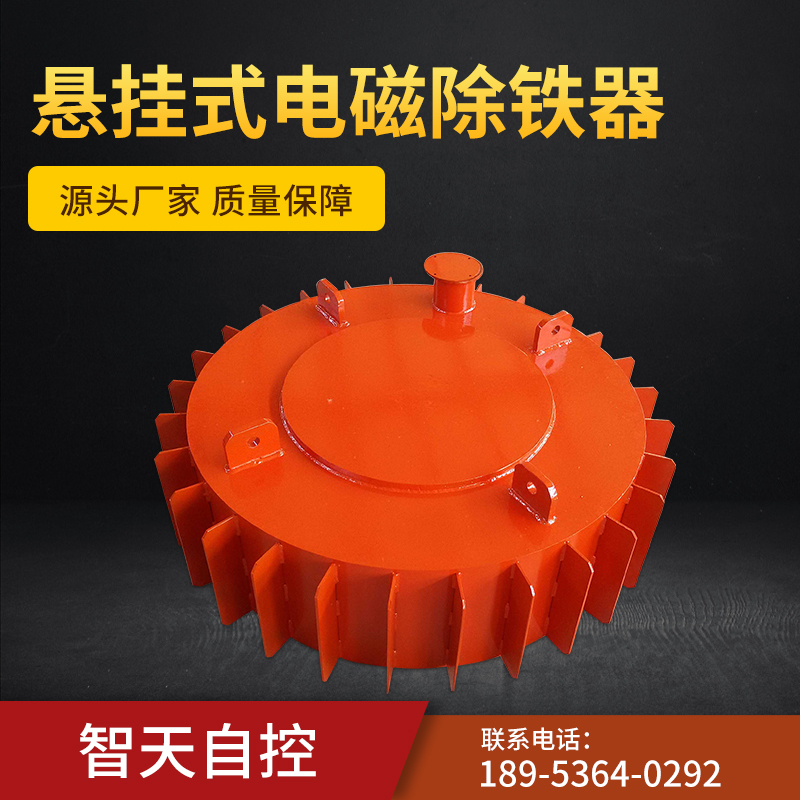

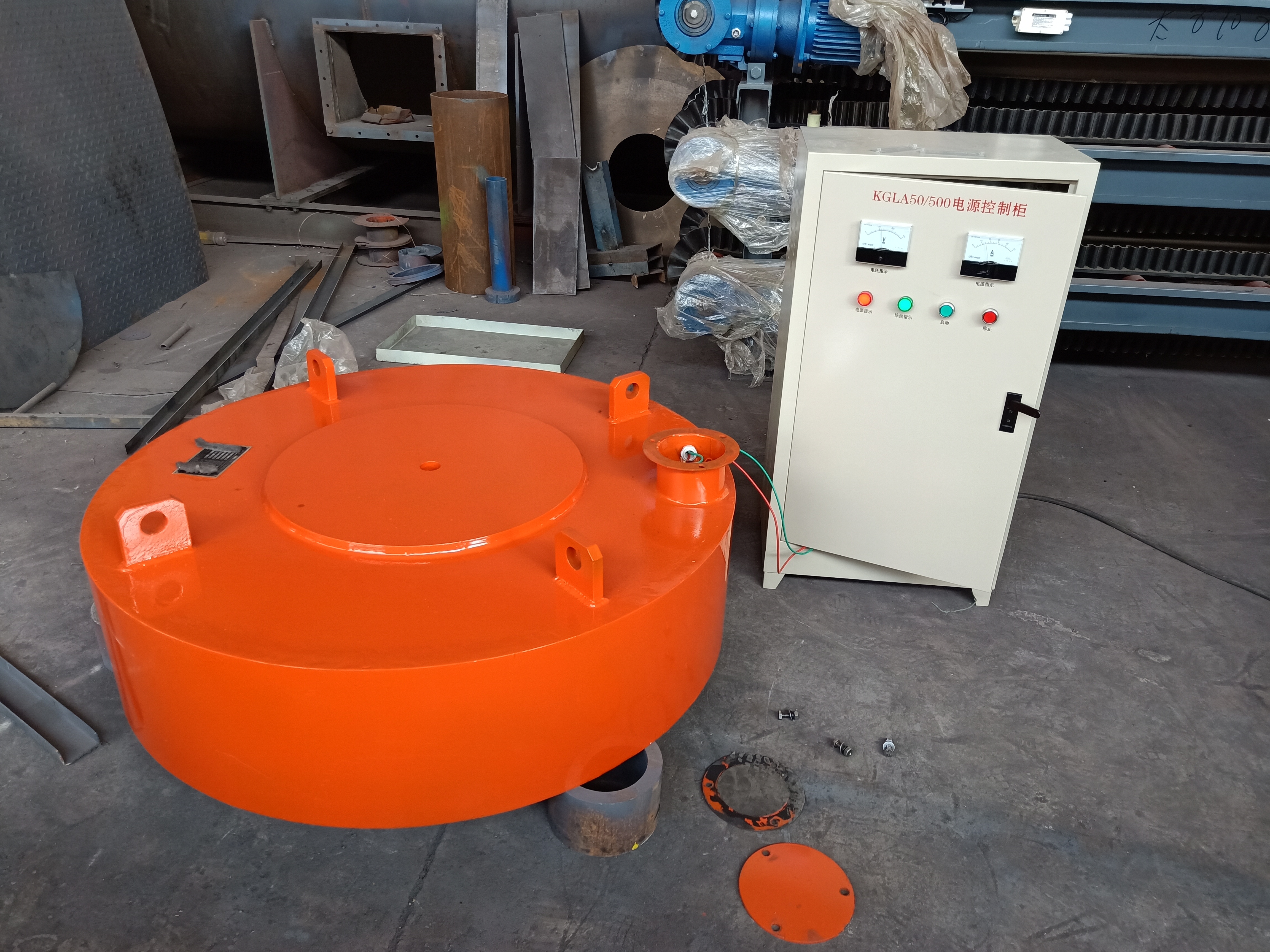

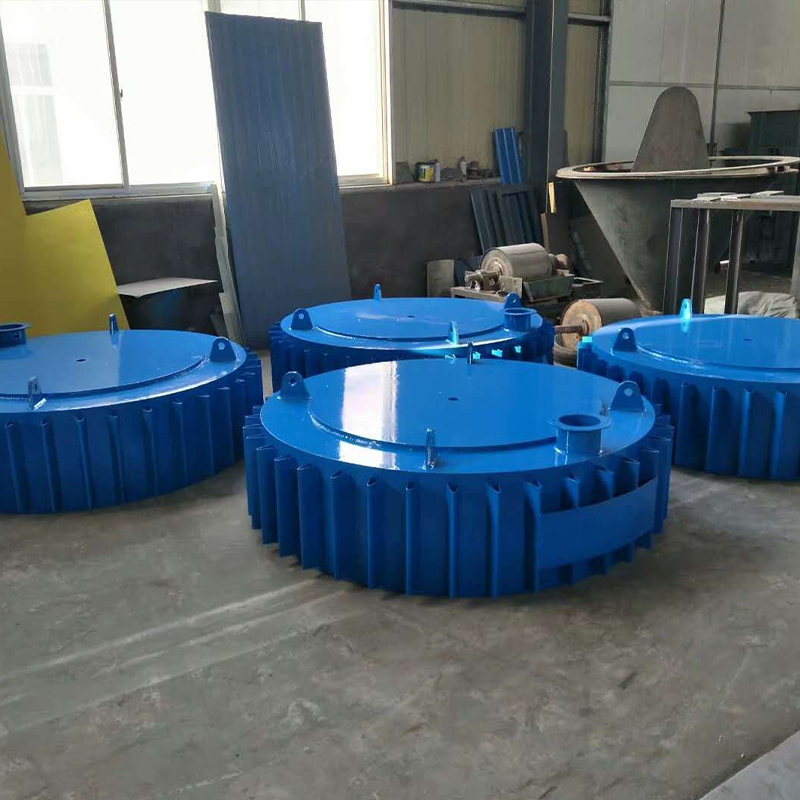

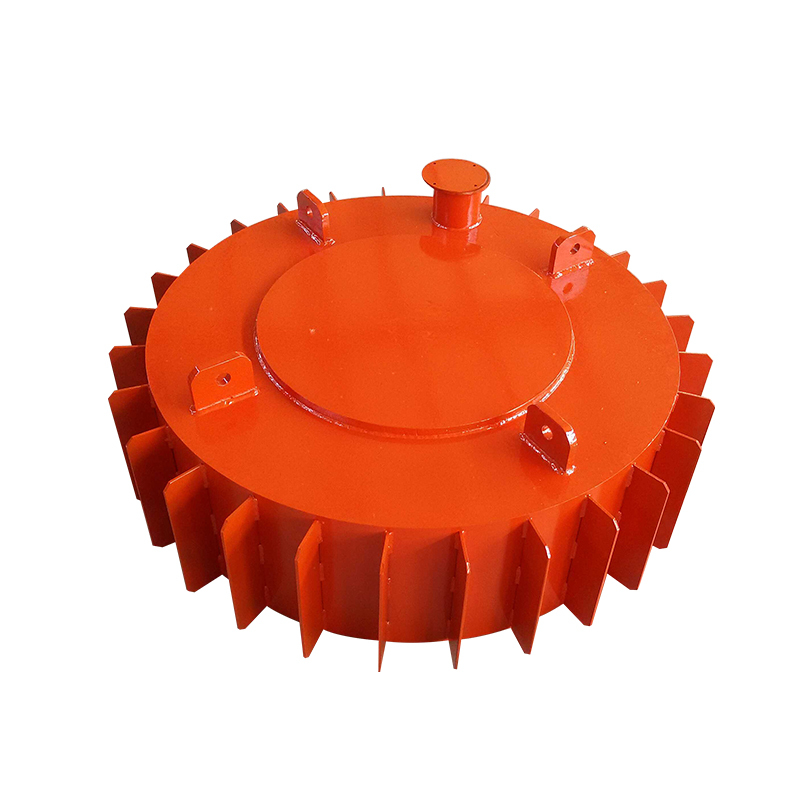

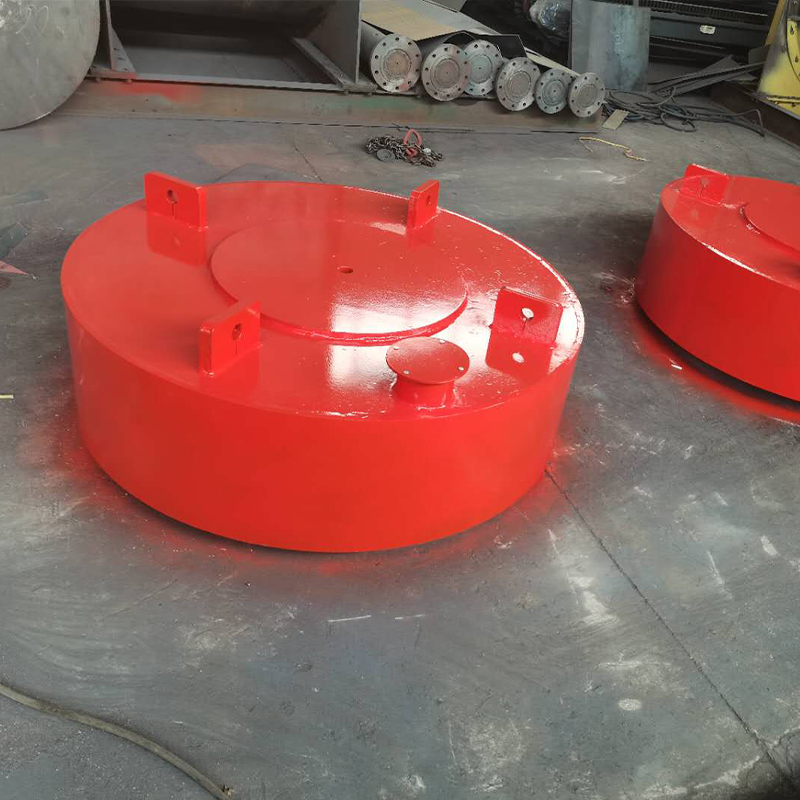

RCDB Series dry electromagnetic separator is a separation equipment used to remove iron from powdery or massive non-magnetic materials. The inner part is poured by special resin with a naturally cooled wholly sealed structure. This machine is usually suspended over the conveyor belt to collect ferrous elements from non-magnetic materials.
The property index of the product is higher than JB/T7689-95 standard. It can remove iron weighing 0.1~25KGS from non-magnetic materials.
Electromagnet for Separator (RCDB) is designed for long term operating shift provide with adjustable hook in its suspending system to adjust erection and installation height conveniently. Electromagnetic iron separator provides the most effective removal of the magnetic tramp iron from thicker materials bed and coal. hard coke, ores, limestone, spall, corns and wooden shavings under bigger granularity.
The property index of the product is higher than JB/T7689-95 standard. It can remove iron weighing 0.05~20KGS from non-magnetic materials.
Features: Electromagnetic iron separator
--sustain and reliable magnetic field, with strong magnetic force
--compact structure, light weight and easy to maintain.
--.featuring with dust and rain-protection, wearing erosion, it can run in the harsh environment
--low energy consumption, reliable performance.
Applications
Mining Industry
Mining operations frequently handle large quantities of ore and mineral materials. Steel fragments, bolts and other ferrous objects can enter the conveying system during excavation, transportation and processing.
Cement Industry
Cement plants use conveyors to transport limestone, clinker, coal and other raw materials. Tramp iron can cause serious damage to crushers and grinding systems.
A Self-Cleaning Magnetic Separator installed above the conveyor can continuously remove ferrous contaminants and provide additional protection for downstream equipment.
Coal and Power Plants
Coal conveying systems require reliable protection because foreign metal objects can enter the coal stream during mining and transportation.
ABOUT US
Founded: 2011
Facility Area: 10,000 m²
Annual Output Value: Over 20 million RMB
Team Size: 45 employees
Senior Engineers: 4
Professional Engineers: 15
Product Portfolio: 30+ series, 200+ models
Core Product Categories: Metering equipment, conveying equipment, magnetic separation equipment, dust collection equipment
Industries Served: Cement, building materials, chemicals, metallurgy, calcium carbide, lime kilns, ceramics, grain & oil, mining, coal – 10+ industries
Technical Collaborations: Partnered with multiple renowned design institutes across China (including Beijing, Tianjin, Hefei, Qinhuangdao, and Sinopec Beijing Design Institute)
Sales & Service Coverage: Nationwide, with full pre-sales consultation, on-site commissioning, and post-sales support
Customization Capability: Available upon customer request
Certifications & Compliance
ISO 9000 Quality Management System Certified
Service & Support
Pre-sales: Free material testing, engineering calculations, and site assessment
Installation & Commissioning: On-site technical guidance until stable operation is achieved
Training: Comprehensive operator and maintenance training
Warranty: 12 months standard (extended options available)
Spare Parts: Common wear parts in stock, emergency dispatch within 24 hours
Remote Service: Optional GPRS module for remote diagnostics, tuning, and firmware updates
Response Time: 2-hour response, 48-hour on-site arrival (major domestic regions)
After-Sales Service & Warranty
| Service Item | Commitment |
|---|---|
| Warranty Period | 12 months from commissioning (or 18 months from shipment, whichever comes first) |
| Response Time | Remote diagnosis within 1 hours (business hours) |
| On-site Service | Available within 24 hours (subject to location) |
| Spare Parts Availability | Guaranteed for 1 years after model discontinuation |
| Remote Support | RS485,DCS enables real-time diagnostic and calibration support |
Delivery & Logistics:
| Parameter | Specification | Note |
|---|---|---|
| Standard Model (rotor diameter ≤ 1000mm) | 1 – 2weeks | Stock components available |
| Standard Model (rotor diameter ≥ 1100mm) | 2 – 4 weeks | Subject to order confirmation |
| Custom-Engineered Model | 1 – 2 weeks | Special flange / coating / high-temp version |
| Spare Parts (wear parts) | 3 – 5 business days | Subject to stock availability |
| Expedited Shipping | Available upon request | Additional cost applies |
| Lead Time Start Point | Order confirmation + technical drawing approval | Excluding shipping time |
| Port of Loading | Qingdao/ Shanghai (China) | Alternate ports upon request |
| Standard Incoterms | FOB / CIF / EXW | Buyer's option |
FAQ – Electric Magnetic Separator
Q1: What is the minimum order quantity (MOQ) for the Electric Magnetic Separator?
A: The MOQ is usually 1 set. Customers can order a single Electric Magnetic Separator for a specific project, equipment replacement, testing or production line. For larger projects or multiple units, customized pricing and more competitive offers can be provided.
Q2: Can you provide samples or a test unit?
A: Yes. Sample orders or test arrangements can be discussed according to the customer's application requirements. Customers can provide material type, conveyor width, processing capacity, belt speed and expected iron contamination size, allowing the suitable Electric Magnetic Separator configuration to be recommended.
Q3: How long is the delivery time for an Electric Magnetic Separator?
A: The standard delivery time is generally around 20–30 working days after order confirmation and receipt of the required payment, while customized Electric Magnetic Separator projects may require additional production time. The final delivery schedule depends on equipment specifications, quantity, customization requirements and current production arrangements.
Q4: How is transportation handled for overseas orders?
A: International transportation can be arranged according to the customer's destination and project requirements. Common shipping methods include sea freight, truck transportation and multimodal logistics. Export documents and packing specifications can be prepared according to the selected transportation method. Customers can also appoint their own freight forwarder if preferred.
Q5: What packaging options are available for the Electric Magnetic Separator? Do you support OEM and ODM?
A: The Electric Magnetic Separator can be packed according to transportation requirements, with options such as steel frame packaging, wooden cases and reinforced export packaging. Appropriate protection is applied to reduce the risk of damage during loading, transportation and unloading. OEM and ODM services are supported, including equipment dimensions, structure, technical configuration, product labeling, nameplates and other customized requirements.
