Chain-style Scraper Conveyor

Heavy-Duty Material Conveying for Bulk Solids

A Chain-style Scraper Conveyor is a continuous conveying machine designed to transport bulk materials through enclosed or semi-enclosed conveying channels. The conveyor uses a chain-driven scraper assembly to push materials forward, making the equipment suitable for coal, ash, clinker, slag, limestone, fertilizer, grain, mineral powder, and other bulk solids.

Compared with conventional belt conveying equipment, a Chain-style Scraper Conveyor is particularly useful where the material is abrasive, dusty, hot, heavy, or difficult to handle with an open conveying system. The enclosed structure also helps reduce material spillage and dust dispersion during transportation.

What Is a Chain-style Scraper Conveyor?

A Chain-style Scraper Conveyor consists mainly of a conveyor trough, drive system, chains, scraper flights, sprockets, tensioning device, inlet, outlet, and supporting components.

During operation, the motor drives the sprocket and chain assembly. The connected scraper flights move continuously along the conveying trough and push the material from the feeding point toward the discharge end.

The scraper assembly provides positive material movement instead of relying on friction between a belt and the conveyed material. This makes the conveyor well suited for applications involving dense, abrasive, or irregular bulk materials.

Working Principle

Material enters the conveyor through the inlet or feeding hopper. After the drive motor starts, power is transmitted through the reducer and sprocket to the conveyor chain.

The chain moves the scraper flights along the bottom of the trough. The scrapers push the material forward at a controlled speed until the material reaches the discharge section.

After discharge, the chain and scraper assembly return along the return path and repeat the conveying cycle.

The conveying speed, scraper configuration, trough dimensions, and drive power can be selected according to material properties and required capacity.

Key Features

1. Heavy-Duty Chain Drive

The chain-driven transmission system is designed for demanding industrial applications. A properly selected chain and sprocket configuration can provide stable operation under high material loads.

2. Enclosed Material Conveying

The enclosed conveyor structure helps contain dust and reduce material loss. The design is especially useful for dusty materials in cement, coal, fertilizer, chemical, and mineral processing plants.

3. Suitable for Abrasive Materials

The scraper and trough can be manufactured using wear-resistant materials or reinforced structures when handling abrasive products such as ore, slag, clinker, and crushed limestone.

4. Continuous Conveying

The scraper flights continuously move material from the inlet to the outlet, providing a stable conveying process for production lines that require uninterrupted material transportation.

5. Flexible Installation

Depending on the process layout, the conveyor can be configured for horizontal or slightly inclined conveying. Customized inlet and outlet positions can also help integrate the equipment into existing production systems.

6. Reduced Material Spillage

The enclosed conveying path keeps the bulk material within the conveyor body. This can help maintain a cleaner working environment and reduce material accumulation around the conveying line.

7. Customizable Configuration

Conveyor length, trough dimensions, chain type, scraper material, drive power, discharge arrangement, and other components can be configured according to project requirements.

Applications

A Chain-style Scraper Conveyor can be used in many industries where continuous bulk material handling is required.

Cement Industry

Suitable for conveying clinker, limestone, gypsum, cement raw materials, dust, and other bulk materials between processing stages.

Coal and Power Plants

The conveyor can be used for coal handling, ash transportation, slag conveying, and other solid material handling applications.

Mining and Mineral Processing

Suitable materials include ore, mineral powder, rock fragments, concentrates, and other heavy bulk solids.

Fertilizer Industry

The enclosed conveying design can be used for fertilizer granules, raw materials, and other dry bulk products.

Chemical Industry

The conveyor can transport selected chemical raw materials and granular products where enclosed conveying is preferred.

Metallurgy

Applications include conveying slag, sintering materials, ore, dust, and other metallurgical bulk materials.

Recycling and Waste Processing

The robust scraper conveying mechanism can be adapted for selected industrial waste, recycled materials, and solid residues.

Chain-style Scraper Conveyor vs. Belt Conveyor

The choice between a scraper conveyor and a belt conveyor depends on the material and operating conditions.

A belt conveyor is often preferred for long-distance transportation and relatively clean bulk materials. A Chain-style Scraper Conveyor can be more suitable when the application requires an enclosed conveying path, positive material pushing, heavy-duty construction, or improved resistance to abrasive materials.

For dusty or hot materials, the scraper conveyor's enclosed structure can also provide advantages in controlling material dispersion.

The final selection should consider material temperature, particle size, moisture, bulk density, abrasiveness, conveying distance, inclination, required capacity, and site conditions.

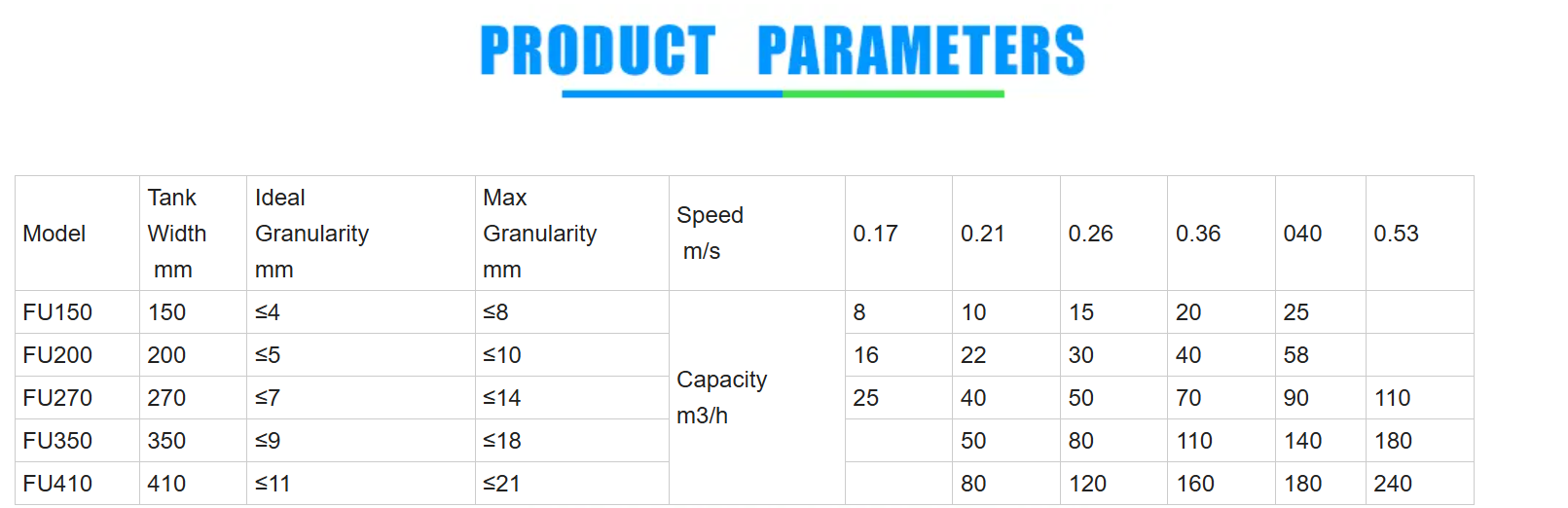

Technical Parameters

Actual technical specifications should be selected according to material characteristics and project requirements.

Why Choose Weifang Zhitian Chain-style Scraper Conveyor?

Weifang Zhitian provides bulk material handling equipment for industries including cement, mining, fertilizer, chemical processing, metallurgy, coal, and power generation.

For a Chain-style Scraper Conveyor project, equipment configuration can be developed according to the customer's material characteristics, conveying capacity, installation space, and production process.

Customized options may include conveyor length, trough dimensions, chain and scraper specifications, wear-resistant components, drive configuration, feeding and discharge positions, and control system integration.

The equipment can also be designed to work with other material handling machines, such as belt conveyors, bucket elevators, feeders, weigh feeders, crushers, screens, and storage hoppers.

How to Select the Right Chain-style Scraper Conveyor?

Before selecting a Chain-style Scraper Conveyor, customers should provide several key operating parameters:

• Material name and characteristics

• Bulk density

• Maximum particle size

• Material temperature

• Moisture content

• Abrasiveness

• Required conveying capacity

• Horizontal conveying distance

• Installation angle

• Feeding and discharge height

• Working hours per day

• Available power supply

• Control system requirements

These parameters help determine the appropriate conveyor size, chain specification, scraper design, motor power, and structural configuration.

Conclusion

A Chain-style Scraper Conveyor provides a robust solution for continuous transportation of bulk and heavy materials. The chain-driven scraper system offers positive material movement, while the enclosed conveying structure helps control dust and reduce material spillage.

For industries such as cement, mining, coal, fertilizer, metallurgy, chemical processing, and power generation, the equipment can be customized to meet different material handling requirements.

With suitable engineering design and component selection, a Chain-style Scraper Conveyor can become an important part of a reliable bulk material handling system.
