Weifang Zhitian Supplies Scraper Conveyor for Industrial Material Handling Project

Scraper Conveyor Project Case

Recently, Weifang Zhitian completed the production and delivery of a Scraper Conveyor for an industrial material handling project. The equipment was developed according to the customer's material characteristics, conveying requirements, and production line layout.

In bulk material processing plants, stable transportation between different production stages is essential. Materials such as coal, coke, limestone, fertilizer, clinker, and other granular or powdery products often require continuous conveying equipment that can operate reliably under demanding working conditions. The Scraper Conveyor provides an efficient solution for these applications.

Customized Scraper Conveyor for Industrial Applications

The customer required a reliable conveying system that could provide continuous material transportation while fitting into the existing production line. After reviewing the application conditions, Weifang Zhitian proposed a customized Scraper Conveyor system.

The equipment uses a chain-driven scraper structure to push materials through the conveying trough. Compared with conventional material transfer methods, this structure is suitable for handling bulk materials in enclosed or semi-enclosed conveying environments.

The conveying capacity, equipment dimensions, drive configuration, inlet, outlet, and installation arrangement can be customized according to individual project requirements.

Reliable Chain Scraper Conveyor Structure

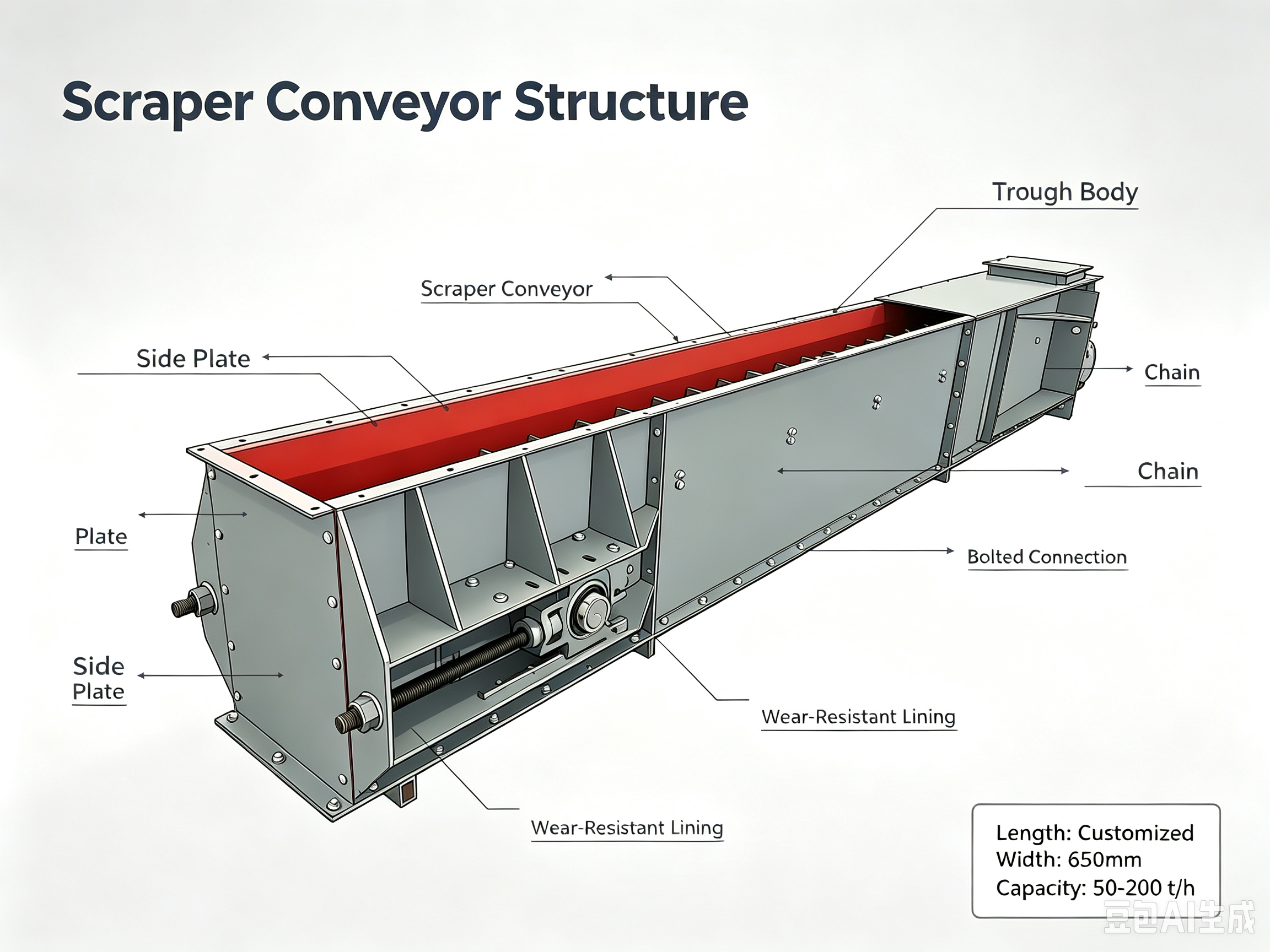

A robust structure is important for industrial conveying equipment. The Scraper Conveyor is designed with a heavy-duty conveying trough, chain assembly, scraper components, drive unit, and supporting structure.

During operation, the chain continuously drives the scrapers along the conveying route. The scrapers push the material toward the discharge end, creating a stable and controlled transportation process.

The design is suitable for applications where materials need to be transferred continuously over a fixed conveying route.

Key advantages include:

• Continuous and stable material conveying

• Heavy-duty chain and scraper structure

• Suitable for bulk and granular materials

• Compact installation design

• Flexible inlet and discharge arrangements

• Enclosed conveying options for dusty materials

• Easy integration with existing production lines

• Convenient inspection and maintenance

• Customized dimensions and conveying capacity

Applications of Scraper Conveyor

The Scraper Conveyor can be used in many industries where bulk materials need to be transported between production processes.

Typical applications include cement plants, mining operations, fertilizer factories, coal processing plants, chemical production facilities, metallurgy plants, power plants, and other material handling systems.

Common conveying materials include:

• Coal

• Coke

• Limestone

• Clinker

• Ore

• Fertilizer

• Cement raw materials

• Chemical raw materials

• Granular materials

• Powdery bulk materials

For abrasive or heavy materials, the equipment can be configured according to the actual material characteristics and operating conditions.

Integration with Other Material Handling Equipment

A Scraper Conveyor does not have to operate as an independent machine. The equipment can be integrated with other material handling equipment to create a complete conveying and feeding system.

Depending on the production process, a scraper conveyor system can be connected with belt feeders, weigh feeders, belt conveyors, crushers, screens, magnetic separators, hoppers, and other equipment.

This type of integration helps improve material flow between different production stages and can reduce manual material handling.

For automated production lines, the drive system can also be connected with the plant's control system according to project requirements.

Weifang Zhitian's Customized Conveyor Solution

Different customers have different requirements for conveying capacity, material characteristics, conveying distance, installation conditions, and discharge arrangements. For this reason, Weifang Zhitian focuses on providing customized equipment rather than using a single standard configuration for every application.

Before manufacturing the Scraper Conveyor, technical parameters such as material type, bulk density, required capacity, conveying distance, installation angle, feeding method, discharge method, and available installation space can be evaluated.

Based on these conditions, the conveyor structure and drive configuration can be selected accordingly.

Project Delivery

After manufacturing and inspection, the Scraper Conveyor was prepared for delivery to the customer's project site. The equipment was manufactured according to the agreed technical requirements and designed for integration with the customer's existing material handling process.

The project demonstrates Weifang Zhitian's experience in supplying industrial conveying equipment for bulk material applications.

With a durable structure, continuous conveying capability, flexible configuration, and compatibility with different production systems, the Scraper Conveyor is a practical choice for factories requiring reliable bulk material transportation.

Conclusion

For industrial plants handling coal, minerals, fertilizer, cement raw materials, clinker, and other bulk solids, selecting suitable conveying equipment can have a direct impact on production stability.

The Scraper Conveyor provides continuous transportation through a chain-driven scraper mechanism and can be customized for different material handling conditions.

Weifang Zhitian provides Scraper Conveyor, feeding equipment, weighing equipment, magnetic separation equipment, and other material handling solutions. Customers can contact Weifang Zhitian with material information, required capacity, conveying distance, and site conditions to obtain a suitable equipment recommendation.
