Rotor Weigh Feeder

Product Introduction and Working Principle

1. Product Introduction

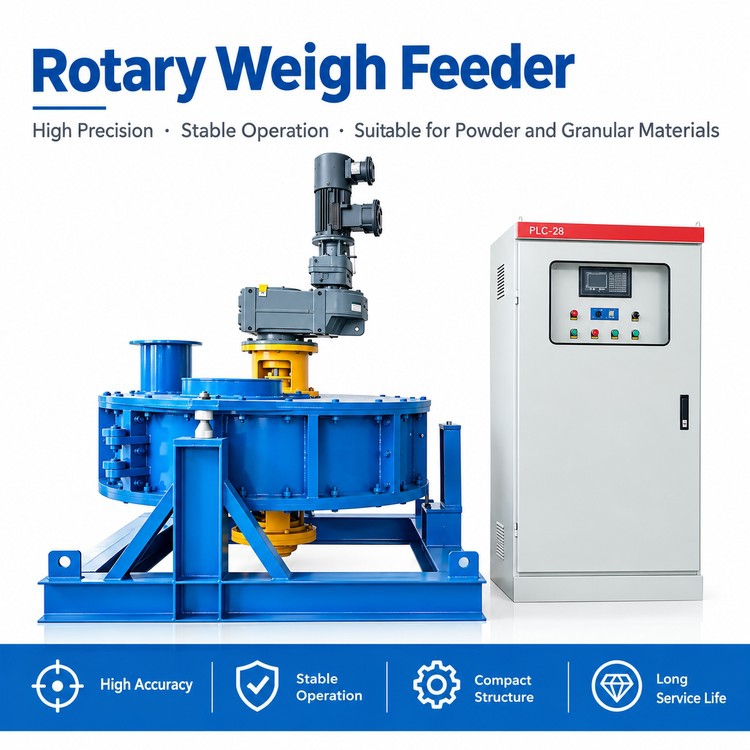

The Rotor Weigh Feeder is an industrial weighing and feeding system designed for the continuous measurement, metering, and controlled feeding of bulk materials. It combines a rotating rotor mechanism, a weighing system, a variable-speed drive, and an intelligent control unit to deliver a stable and adjustable material flow.

WEIFANG ZHITIAN provides Rotor Weigh Feeder solutions for cement plants, mining operations, chemical factories, power plants, and other industrial production lines. The equipment is suitable for handling various powdery and granular materials, including cement, mineral powder, pulverized coal, fly ash, limestone powder, and other dry bulk materials.

With a compact structure and automatic feeding control, the Rotor Weigh Feeder supports continuous production, accurate material proportioning, and reliable process operation. Feeding capacity, rotor configuration, motor power, and control system can be customized according to the material characteristics and application requirements.

2. Working Principle of Rotor Weigh Feeder

The Rotor Weigh Feeder operates through the coordinated action of material feeding, rotor rotation, weight measurement, and automatic speed regulation.

Step 1: Material Feeding

Bulk material enters the feeder from a hopper, silo, or upstream feeding device. The material flows into the rotor chambers through the inlet.

Step 2: Rotor Rotation and Material Transfer

Driven by a geared motor, the rotor rotates continuously and carries the material from the inlet to the discharge outlet. The rotor structure provides controlled material transfer and supports continuous feeding.

Step 3: Weight Measurement

The weighing mechanism detects the material load, while the control system processes the relevant weighing and operating signals to calculate the feeding rate and accumulated material quantity. In a gravimetric rotor weigh feeder, the material weight is measured directly rather than estimated solely from rotor speed.

Step 4: Automatic Flow Control

The controller compares the actual feeding rate with the preset target value and adjusts the rotor speed through the variable-frequency drive. When the material load or feeding conditions change, the system regulates the operating speed to maintain the required material flow.

Step 5: Continuous Discharge

The measured material is discharged continuously into the next production process, such as a cement kiln, grinding system, mixer, or conveying line.

This automatic process helps maintain stable material feeding and improves the consistency of industrial batching and proportioning operations.

3. Main Features of Rotor Weigh Feeder

• Continuous Weighing and Feeding: Combines material metering and feeding for uninterrupted production.

• Automatic Flow Regulation: Adjustable rotor speed helps maintain the required feeding rate.

• Stable Metering Performance: Gravimetric measurement supports accurate material proportioning and process control.

• Compact Structure: Integrates key feeding and weighing components into a space-saving system.

• Industrial Durability: Designed for demanding production environments, with configuration options based on material abrasiveness and operating conditions.

• Intelligent Control: Can support real-time flow-rate display, cumulative weight recording, alarms, and production-line integration, depending on the selected control configuration.

• Customizable Design: Rotor size, feeding capacity, drive system, and control interface can be selected according to project requirements.

4. Applications of Rotor Weigh Feeder

The Rotor Weigh Feeder is widely used in industries that require continuous and controlled material feeding.

Cement Industry: Feeding and metering pulverized coal, cement raw materials, mineral powder, and other process materials.

Mining and Mineral Processing: Controlling the supply of mineral powders, limestone powder, and other bulk mineral materials.

Chemical Industry: Feeding dry chemical powders and granular raw materials into processing and mixing equipment.

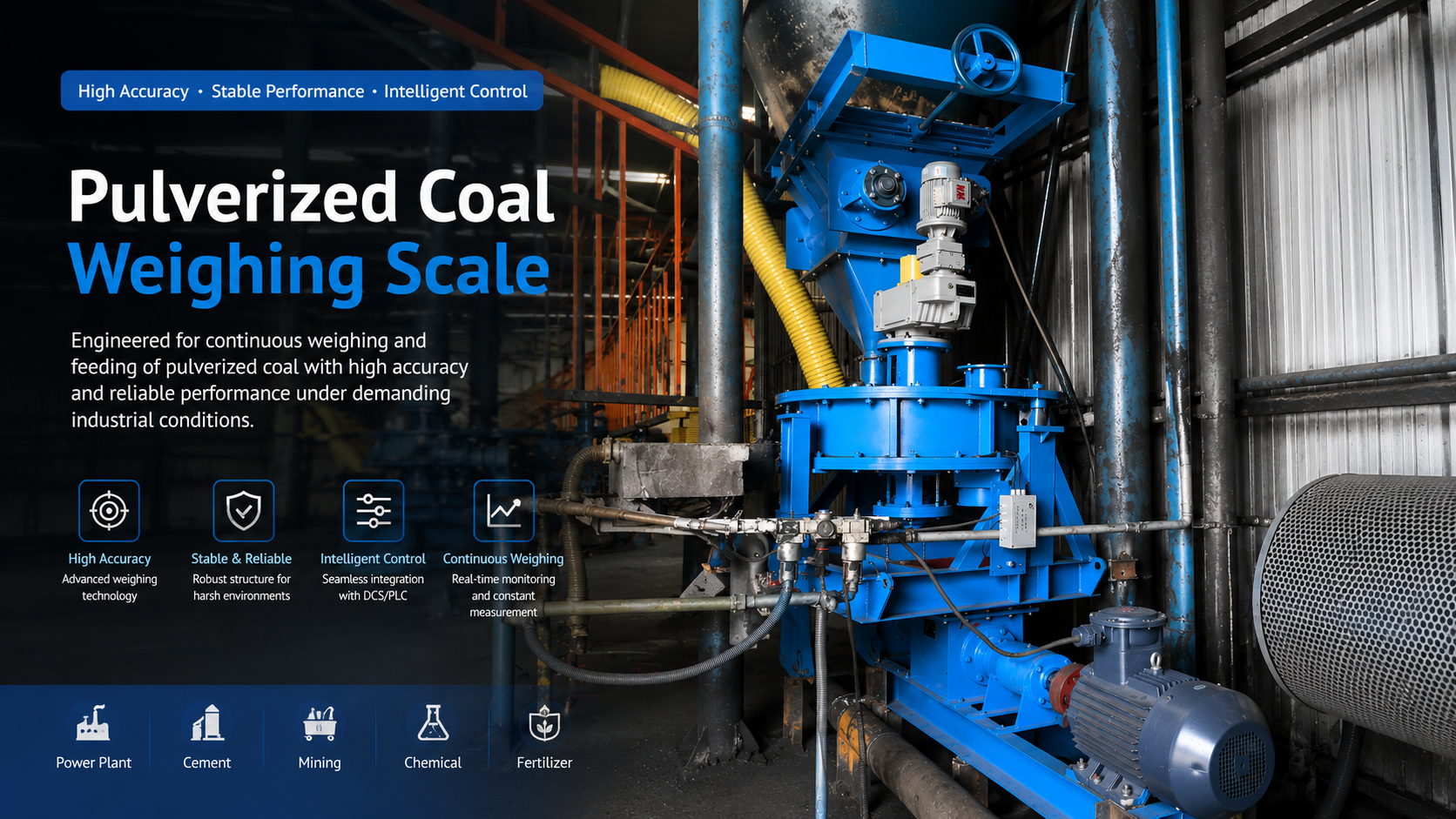

Power Plants: Metering pulverized coal and other suitable solid fuels.

Fertilizer Industry: Providing controlled feeding of powdered and granular fertilizer raw materials.

Building Materials Industry: Supporting material proportioning and continuous feeding in production systems.

5. Why Choose WEIFANG ZHITIAN Rotor Weigh Feeder?

WEIFANG ZHITIAN focuses on industrial weighing, quantitative feeding, and material handling equipment. Our Rotor Weigh Feeder can be configured for different materials, production capacities, and process conditions.

We provide customized equipment selection, weighing and feeding control solutions, and integration options for industrial production lines. Whether the application involves cement, mineral powder, pulverized coal, or chemical raw materials, the appropriate configuration can be selected according to the required feeding rate and operating conditions.

The Rotor Weigh Feeder is an effective solution for plants seeking continuous material metering, automatic feeding regulation, and improved production consistency.

Contact WEIFANG ZHITIAN to discuss your material type, required capacity, and process requirements.
