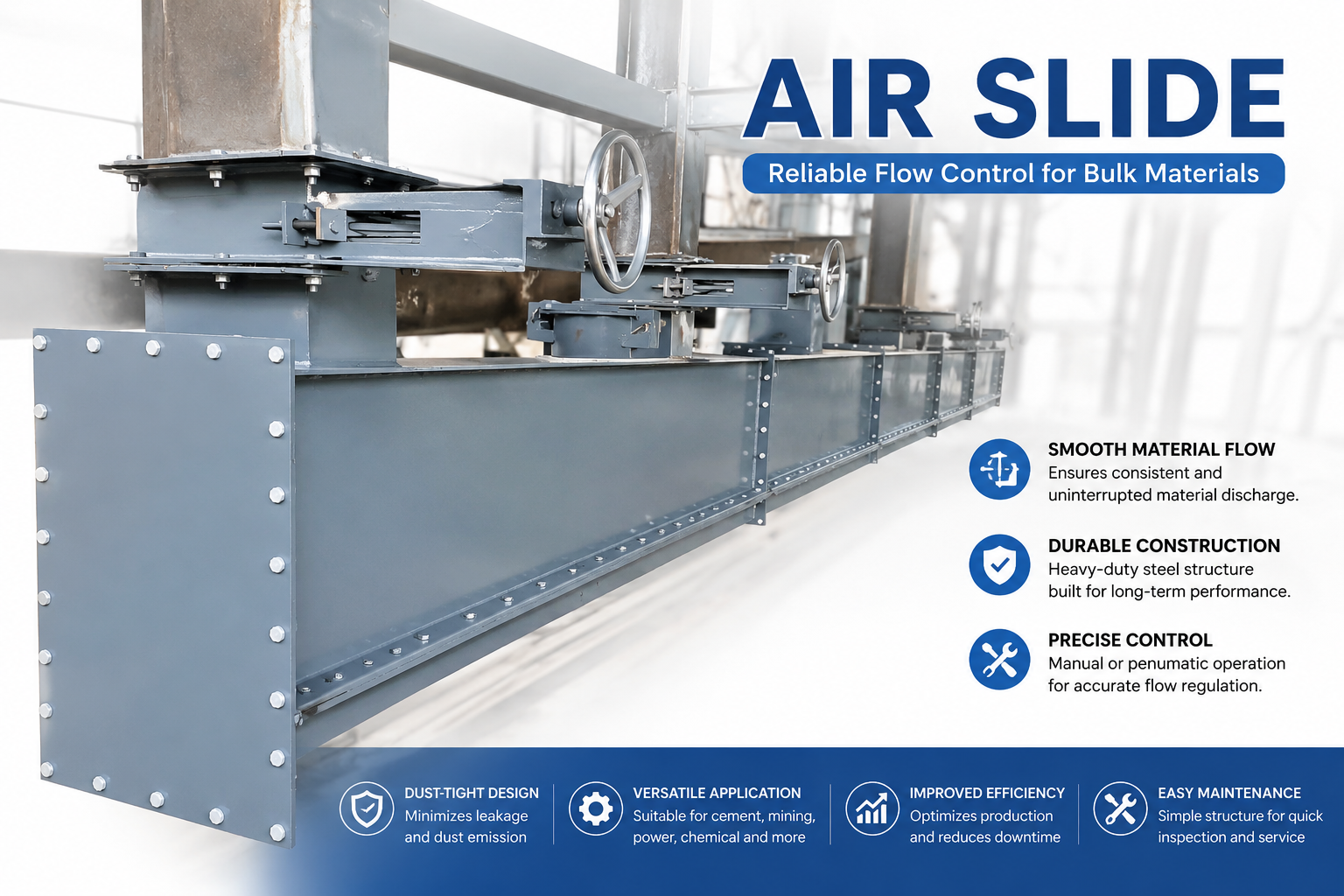

Air Slide for Cement and Raw Meal Conveying

Air Slide is a pneumatic conveying equipment widely used in cement plants for the continuous and enclosed transportation of dry, fine and powdery materials. In cement production, Air Slide is commonly used to convey cement, raw meal powder, fly ash and other fine materials between storage, grinding, blending and packing sections.

Weifang Zhitian Air Slide uses low-pressure air to fluidize powder materials and make the material flow along a slightly inclined conveying surface. Compared with traditional mechanical conveyors, the Air Slide has a simple structure, few moving parts and low operating noise, making it suitable for long-term continuous operation in cement production lines.

Air Slide for Cement Powder

Finished cement is a fine powder that requires reliable and enclosed conveying during production. Air Slide provides a practical solution for transferring cement from cement mills to storage silos, from silos to packing systems, and between different process sections.

The conveying process takes place inside a closed chute. Air passes through the porous fabric layer and fluidizes the cement powder, allowing the material to move smoothly under gravity. The enclosed structure helps reduce dust leakage and provides a cleaner working environment around the conveying system.

For cement plants with continuous production requirements, Air Slide can be integrated with silos, bucket elevators, screw conveyors, cement mills, dust collectors and packing equipment.

Air Slide for Raw Meal Powder

Raw meal is another common material transported by Air Slide in cement plants. Raw meal powder normally needs to be transferred between raw meal grinding, blending and homogenization systems before entering the preheater or kiln system.

The Air Slide provides a stable conveying method for dry raw meal powder. With an appropriate installation angle and air supply, raw meal can move continuously through the conveying chute without the need for a conventional mechanical driving mechanism.

The enclosed conveying design also helps control dust during raw meal transportation, which is important in cement production environments where large quantities of fine powder are handled every day.

Main Features of Air Slide

The Air Slide is designed for simple operation and continuous powder conveying. The main features include:

• Simple conveying structure: Few moving components reduce mechanical wear and maintenance requirements.

• Enclosed powder conveying: The closed chute helps reduce dust dispersion during transportation.

• Low energy consumption: Low-pressure air is used to fluidize the material and assist material flow.

• Continuous operation: Suitable for continuous conveying in cement production lines.

• Low operating noise: The system does not require a conventional mechanical conveying chain or belt.

• Flexible installation: Horizontal and inclined conveying arrangements can be designed according to plant layout.

• Easy system integration: The Air Slide can be connected with silos, mills, elevators, dust collectors and other equipment.

Application in Cement Production

Air Slide systems are widely used in different sections of a cement plant. Typical applications include:

Cement conveying: Transporting finished cement from the grinding system to cement silos and from silos to packing or loading systems.

Raw meal conveying: Moving raw meal powder from grinding and blending equipment toward homogenization or kiln feeding systems.

Fly ash conveying: Handling fine fly ash and other dry powder materials in cement and building-material plants.

Silo discharge and transfer: Connecting multiple storage and processing units to create a continuous powder conveying route.

Why Choose Air Slide for Cement Plants?

For dry powder materials such as cement and raw meal, conveying equipment needs to provide stable material flow while controlling dust and operating costs. Air Slide combines pneumatic fluidization with gravity conveying, resulting in a compact and relatively simple conveying system.

The system can be customized according to material characteristics, conveying capacity, conveying distance, installation angle and plant layout. Different chute sizes, air-permeable fabric materials and supporting components can be selected according to actual operating conditions.

Weifang Zhitian provides Air Slide conveying solutions for cement plants and other powder-processing industries. The equipment can be designed for cement powder, raw meal and other dry fine materials, helping customers establish a reliable and enclosed material conveying system.
